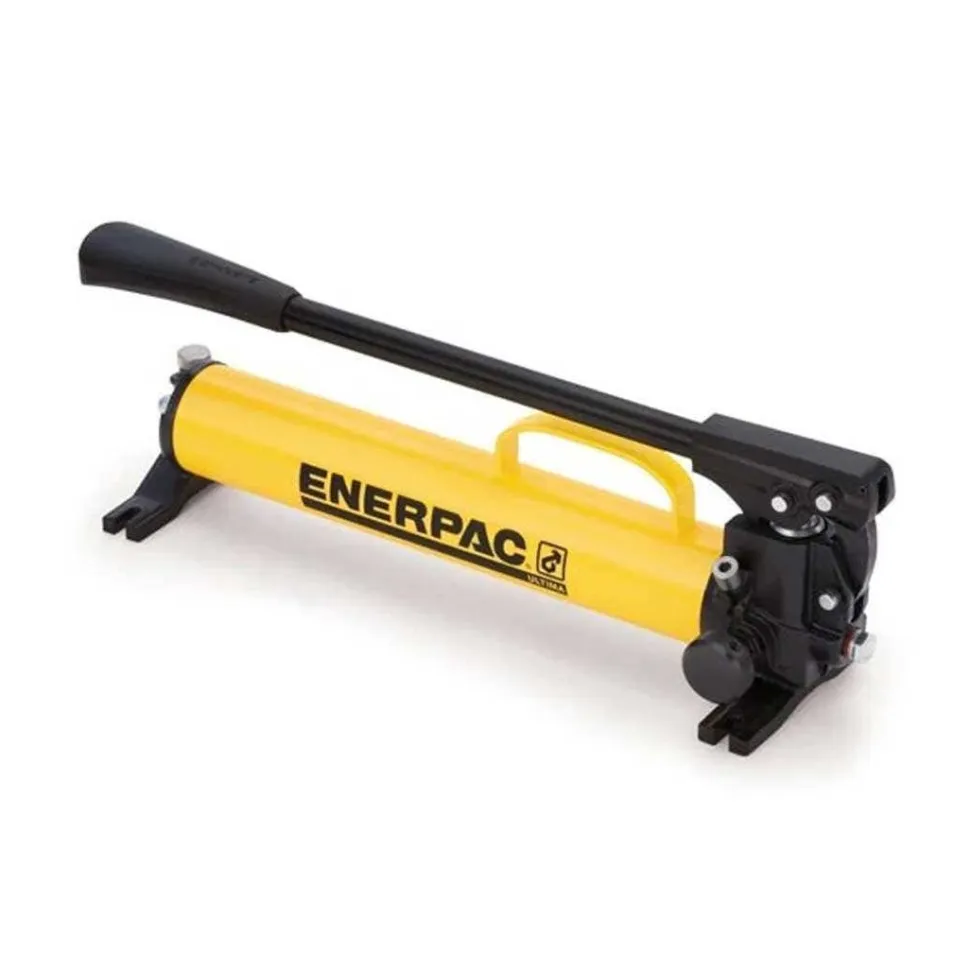

Enerpac 41 in3 Usable Oil ULTIMA Steel Hydraulic Two Speed Hand Pump P77
$128.99
Enerpac
41 in3 Usable Oil ULTIMA Steel Hydraulic Two Speed Hand Pump P77
Enerpac P-Series, Ultima Steel Hydraulic Hand Pumps are durable, portable, and easy to use. The range features 2 stage hydraulic pumps for superior speed, and generous oil capacities – ideal for operating multiple hydraulic cylinders.
FEATURES:
- Reduced handle effort and ergonomic grip for less operator fatigue
- Vent free reservoir eliminates spills
- Quick grip handle allows for easy transport
- Integral reservoir over-pressurization protection
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Cylinder Compatability | Single-acting |
| Maximum Flow at Rated Pressure | .15 in3/stroke |
INCLUDES:
(1) Hand Pump
| Dimension J | 16.67 In | 424 Mm |
|---|---|
| Dimension D | 1.38 In | 35 Mm |
| Cylinder Compatability | Single-acting |
| Pressure Rating2nd Stage Psi | 10000 |
| Maximum Flow At Rated Pressure | 0.15 in³ |
| Maximum Flow At Rated Pressure metric | 2,46 cm3/stroke |
| Piston Stroke | 1 in | 25,4 mm |
| Oil Displacement Per Stroke | – in³ | ‘- cm³ |
| Maximum Flow At Rated Pressure liter | 0.00246 |
| Dimension S | 0.33 in | 8,4 mm |
| Pressure Rating1st Stage bar | 34 |
| News Feed Product Group | Pumps |
| Dimension L | 6.39 in | 163 mm |
| Dimension H | 21.63 In | 550 Mm |
| Maximum Operating Pressure Ranges Bar | 700 |
| Maximum Handle Effort | 88 lbs |
| Dimension N | 5.51 in | 140 mm |
| Sub Types | Hand Pump – Two Speed |
| Dimension C | 1.18 In | 30 Mm |
| Dimension A | 15.39 In | 391 Mm |
| Reservoir Capacity | 672 cm³ | 41 in³ |
| Product Line | Industrial Tools |
| Pump Type | Two Speed |
| Oil Displacement Per Stroke 2nd Stage | 0.15 in³ | 2,46 cm³ |
| Shipping Weight | 18.3 lbs |
| Weight | 15.6 lbs | 7,1 kgs |
| Pump Power Source | Manual |
| Maximum Operating Pressure Ranges Psi | 10000 |
| Usable Oil Capacity | 41 in³ | 672 cm³ |
| Pressure Rating1st Stage Psi | 500 |
| Maximum Handle Effortkg | 40 |
| Dimension P | 4.37 in | 111 mm |
| Maximum Flow Rate Rangesat Rated Pressure | 0 – 20 in³/min |
| Valve Operation | Manual |
| Country of Origin | China |
| Upsell item | P80 |
| Dimension B | 19.19 In | 487 Mm |
| Dimension E | 1.86 In | 47 Mm |
| Oil Displacement Per Stroke 1st Stage | 1 in³ | 16,39 cm³ |
| Maximum Flowat Rated Pressure | .15 in3/stroke |
| Pressure Rating2nd Stage bar | 700 |
| Maximum Flow At Rated Pressure imperial | .15 in3/stroke |
| Type | Hydraulic Pump |
| OPT SKU | ENP-P77 |
|---|---|
| MPN | P77 |
| UPC/GTIN | 662005129089 |
| Product Type | Hand Hydraulic Pump |
| Google Category | Hardware > Hardware Pumps |
| Shipping Weight | 16.00 |
