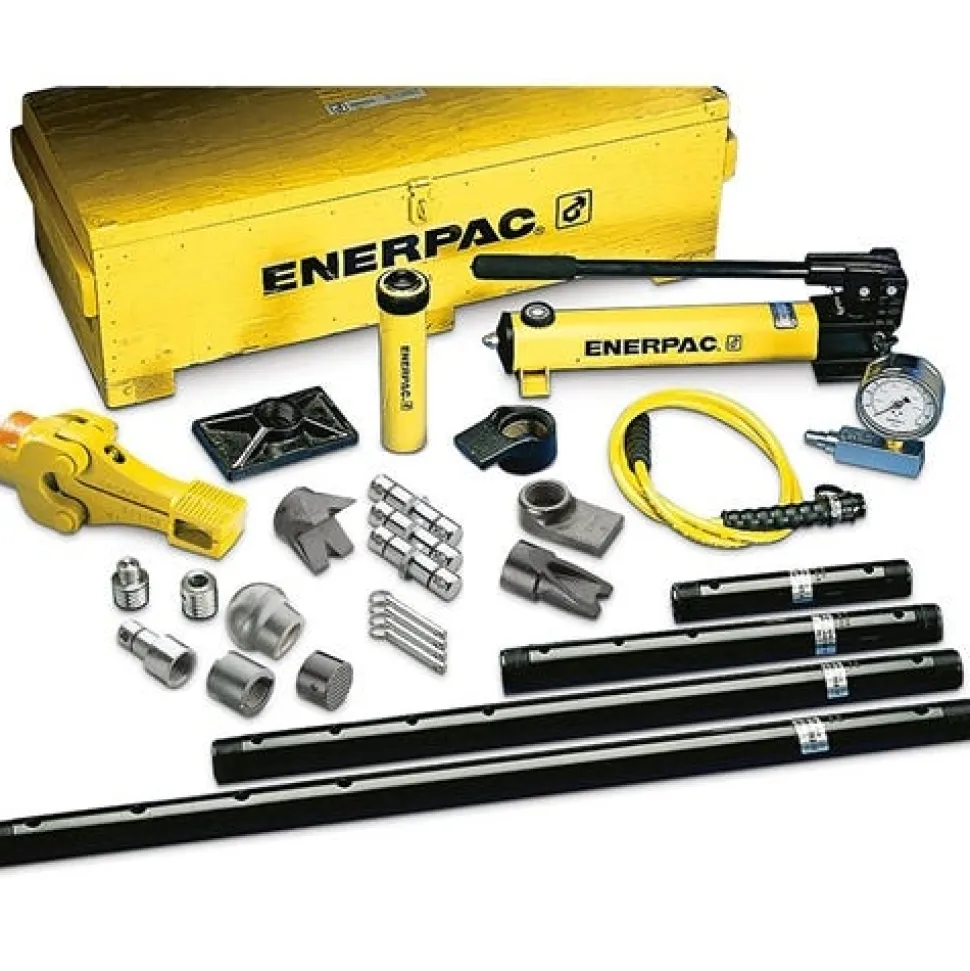

Enerpac 2.5 Ton Hydraulic Cylinder & Hand Pump Set w/ 24 Cylinder Attachments MSFP5

Enerpac

2.5 Ton Hydraulic Cylinder & Hand Pump Set w/ 24 Cylinder Attachments MSFP5

This Enerpac MSFP-5 maintenance set is a complete assortment of accessories for hydraulic power tools used for pushing; pulling; lifting; pressing; or clamping. It includes an Enerpac pump; hose; cylinder; and gauge. It comes with 24 lock-on or threaded attachment components; and maintains a 2.5-ton capacity when using these attachments.

FEATURES:

• Using these sets allows you to quickly configure a unique tool to meet your most difficult jobs.
• Lock-on or threaded connectors.
• Complete set for almost every maintenance application.
• When cylinders are used with maintenance set attach ments or components; the maximum system pressure must be limited to half the rated pressure (5;000 psi).
• If no attachments are being used; capacity is double these values. Maximum operating pressure is 10;000 psi.
• Only use attachments provided with set. Non-Enerpac attachments and longer extension tubes will reduce column strength; potentially creating unsafe conditions.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	5;000
Stroke (in)	5
Collapsed Height (in)	8.5
Number of Attachment Components	24

INCLUDES:

• A1034 2.5 Ton RC Collar Toe Cylinder Attachment
• A23 2.5 Ton RC Threaded Adapter Cylinder Attachment
• A25 2.5 Ton RC Base Cylinder Attachment
• A530 2.5 Ton RC Threader Plunger Toe Cylinder Attachment
• A531 2.5 Ton RC Serrated Saddle Cylinder Attachment
• A532 2.5 Ton RC 90 Degree V-Base Cylinder Attachment
• A539 2.5 Ton RC Rubber Flex-Head Cylinder Attachment
• A545 2.5 Ton RC Threaded Connector Cylinder Attachment
• A629 2.5 Ton RC Wedge Head Cylinder Attachment
• CM6 Industrial .67 ft3 Storage Case
• FZ1055 High Pressure Fitting Adapter 10;000 PSI 3/8 NPTF Female to 1/4″ NPTF Male
• G2535L Hydraulic 2.5″ Face Lower Mount Pressure Gauge 10;000 PSI
• GA3 1/4″ Gauge Adapter NPT Gauge Port 10;000 PSI
• HC7206 6′ Thermo-Plastic High Pressure Hydraulic Hose
• MZ4007 2.5 Ton RC Lock-on Connector Cylinder Attachment
• MZ4009 2.5 Ton RC Female Lock-on Adapter Cylinder Attachment
• MZ4010 2.5 Ton RC Flat Base Cylinder Attachment
• MZ4013 2.5 Ton Lock Pin Cylinder Attachment
• P142 Two Speed Lightweight 20 in3 Usable Oil Hydraulic Hand Pump For Single-Acting Cylinders
• RC55 4.9 Ton Hydraulic 5″ Stroke Single-Acting General Purpose Cylinder
• WR5 1 Ton Single-Acting Hydraulic Wegie & Spread Cylinder w/ 3.7″ Maximum Spread

“
