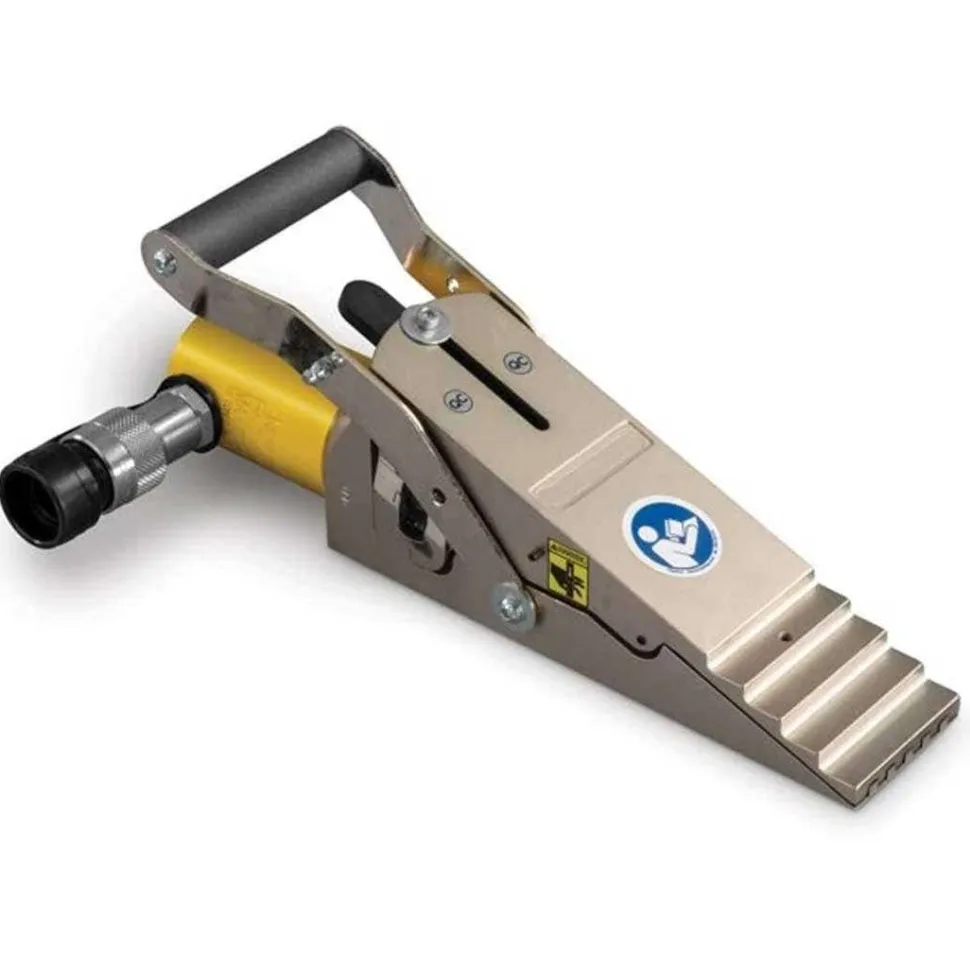

Enerpac 16 Ton Vertical Lifting Wedge w/ Integrated Pump & 0.83 Lifting Height LWC16

Enerpac

16 Ton Vertical Lifting Wedge w/ Integrated Pump & 0.83 Lifting Height LWC16

Enerpac’s new Lifting Wedge is a convenient and portable tool designed to safely lift and lower heavy objects. Powered by a built-in hydraulic hand pump; the LWC-16 is a ready-to-use tool – no making or breaking hydraulic connections. This compact tool delivers 16 tons of lifting force and requires a clearance gap as small as 0.39 inches.

FEATURES:

• Minimized access gap for greater accessibility on applications with limited insertion space.
• Secure; stable lifting and lowering motion with no slippage.
• Single-acting spring return cylinder allows for automatic; mechanical retraction.
• Integrated hand pump offers greater maneuverability.
• Includes safety block SB2; lifting block LWB1; & carrying case.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10;000
Maximum Spread (in)	0.83
Power Source	Hydraulic
Maximum Lifting Force (ton)	16
Maximum Lifting Force (imperial tons)	16
Spreading Force (imperial tons)	16
Capacity (imperial tons)	16
Stroke (in)	0.83
Minimum Clearance Gap (in)	0.39
Maximum Lift Per Stage	21
Maximum Lifting Height (in)	2.02
Maximum Lifting Height Using Stepped Block	2.72
Tip Clearance (in)	0.39
Oil Capacity (in3)	–

“
