Enerpac 12.5 Ton Hydraulic Cylinder & Hand Pump Set w/ 13 Cylinder Attachments MS220

Enerpac

12.5 Ton Hydraulic Cylinder & Hand Pump Set w/ 13 Cylinder Attachments MS220

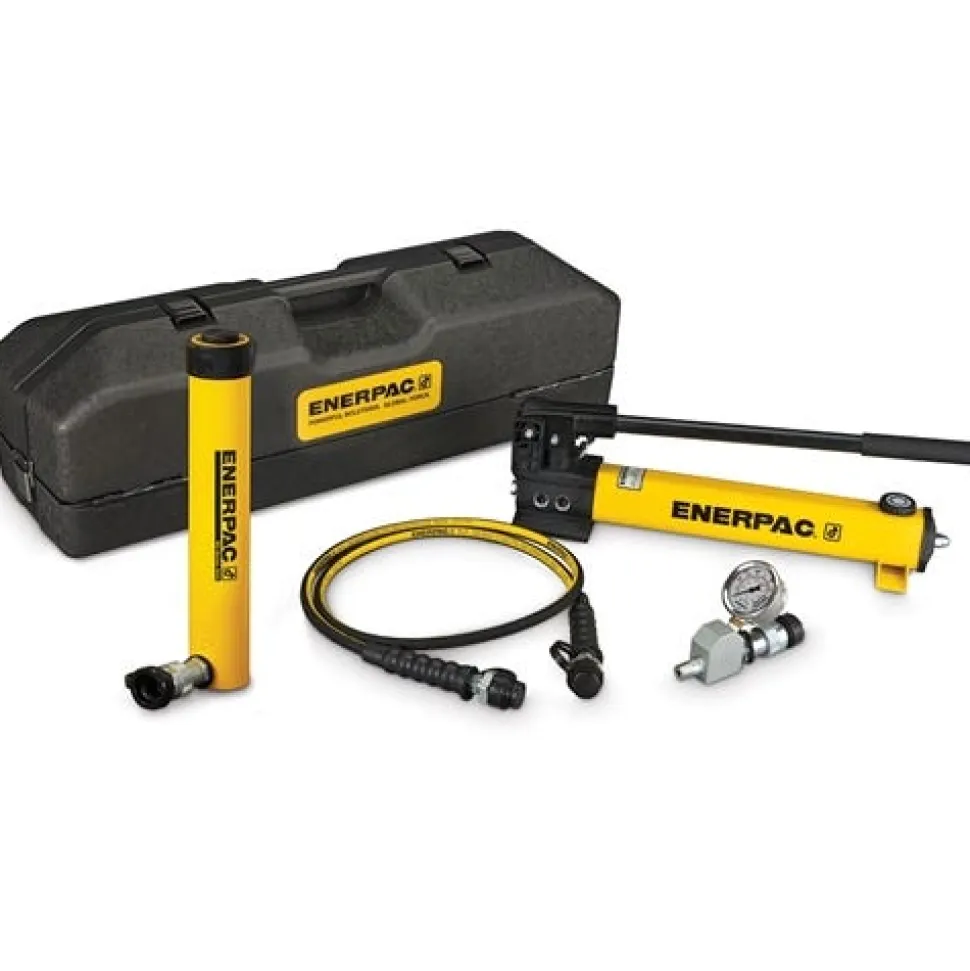

The Enerpac MS220 12.5-ton hydraulic maintenance set consists of hydraulic tools and accessories for pushing; pulling; lifting; pressing; straightening; spreading; and clamping in construction; manufacturing; and maintenance and repair applications. The set has a maximum capacity of 12.5 tons and includes a two-speed hydraulic hand pump that can advance and release a single-acting cylinder or power a hydraulic tool; but cannot hold a load. It also comes with a single-acting spring-return hydraulic cylinder for applying force to a load. The set comes with a range of accessories and components and a wooden tool box with a latching wooden tool box for organizing; transporting; and storing the tools and accessories.

FEATURES:

• Using these sets allows you to quickly configure a unique tool to meet your most difficult jobs.
• Lock-on or threaded connectors.
• Complete set for almost every maintenance application.
• When cylinders are used with maintenance set attach ments or components; the maximum system pressure must be limited to half the rated pressure (5;000 psi).
• If no attachments are being used; capacity is double these values. Maximum operating pressure is 10;000 psi.
• Only use attachments provided with set. Non-Enerpac attachments and longer extension tubes will reduce column strength; potentially creating unsafe conditions.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	5;000
Stroke (in)	6.25
Collapsed Height (in)	10.75
Number of Attachment Components	13

INCLUDES:

• A218 12.5 Ton RC Chain w/ Hook Cylinder Attachment
• A238 12.5 Ton RC Single Chain Plate Cylinder Attachment
• A242 12.5 Ton RC Pipe Coupling Cylinder Attachment
• A243 12.5 Ton RC Round Base Cylinder Attachment
• A27 12.5 Ton RC Base Cylinder Attachment
• A28 12.5 Ton RC Threaded Adaptor Cylinder Attachment
• A595 12.5 Ton RC Collar Toe Cylinder Attachment
• A607 12.5 Ton RC Plunger Base Cylinder Attachment
• CW166 Wood Storage Box
• GA2 1/2 Gauge Adaptor NPT Gauge Port 10;000 PSI
• GP10S 700 Bar Hydraulic Force & Pressure Gauge 10;000 PSI
• HC7206 6′ Thermo-Plastic High Pressure Hydraulic Hose
• P392 Two Speed Lightweight Hydraulic Hand Pump
• RC256 25.8 Ton Hydraulic 6.25″ Stroke Single-Acting General Purpose Cylinder

“
