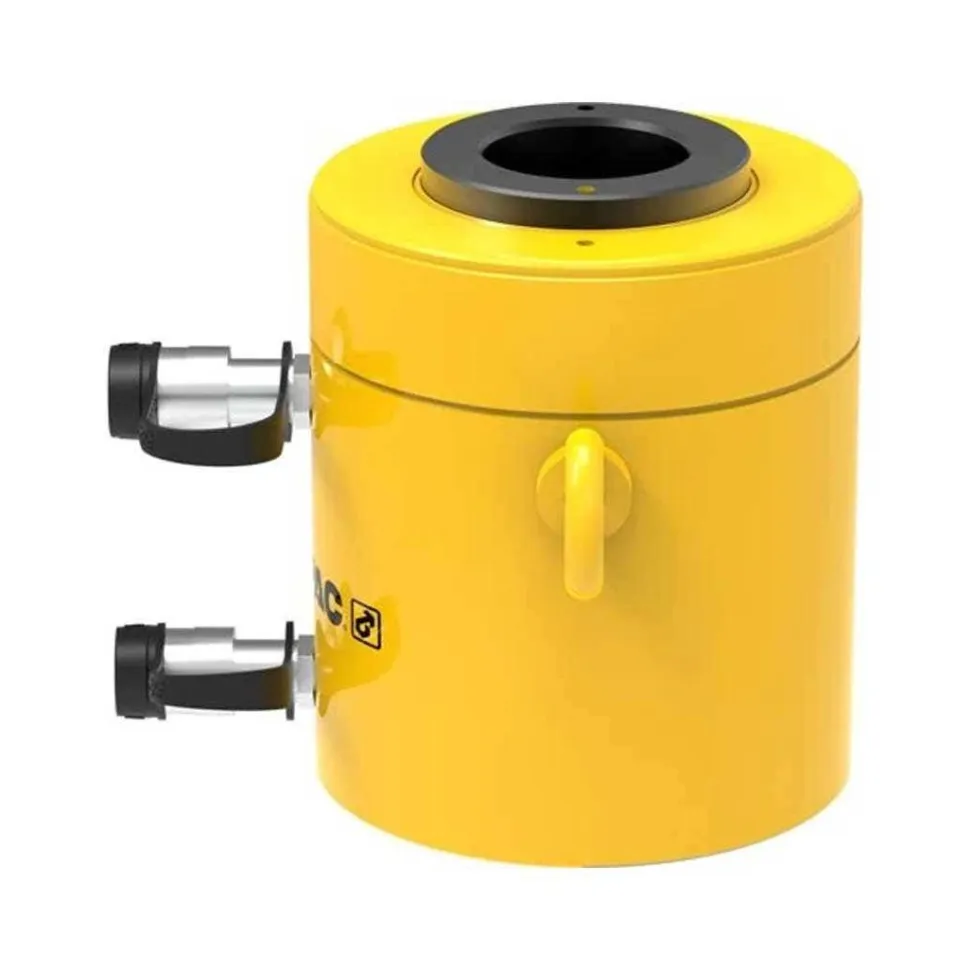

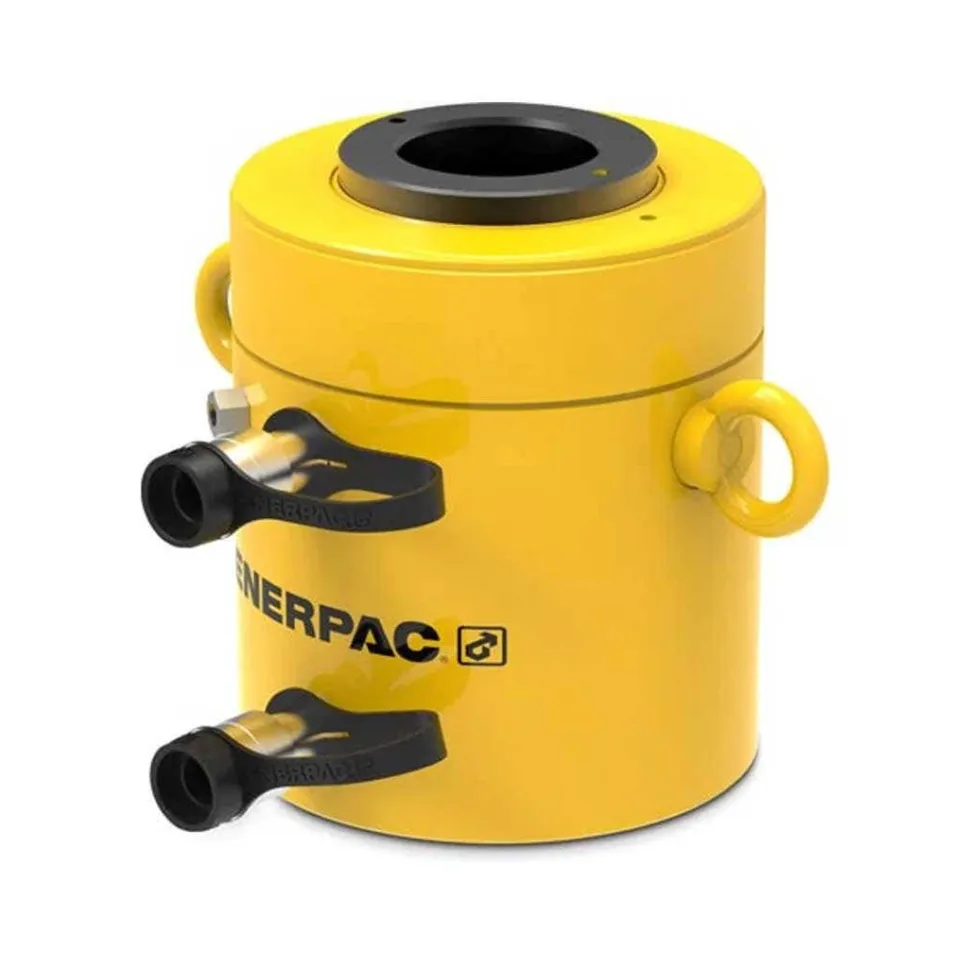

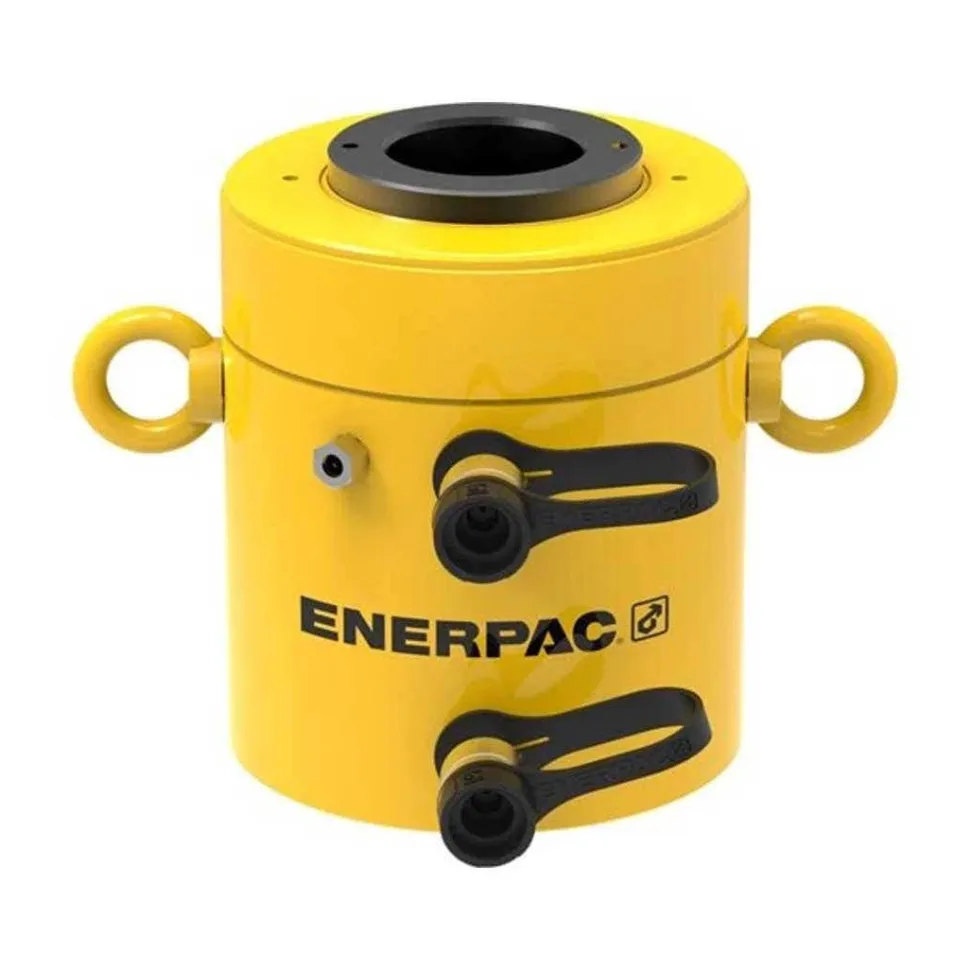

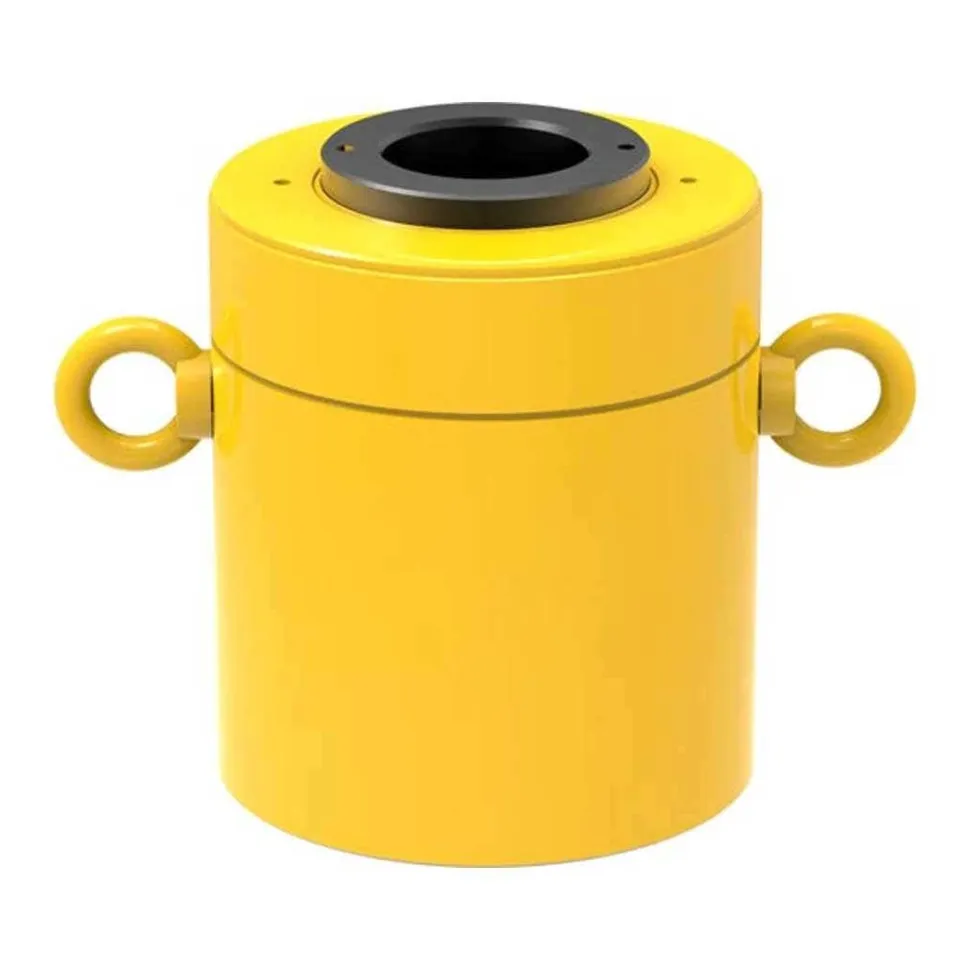

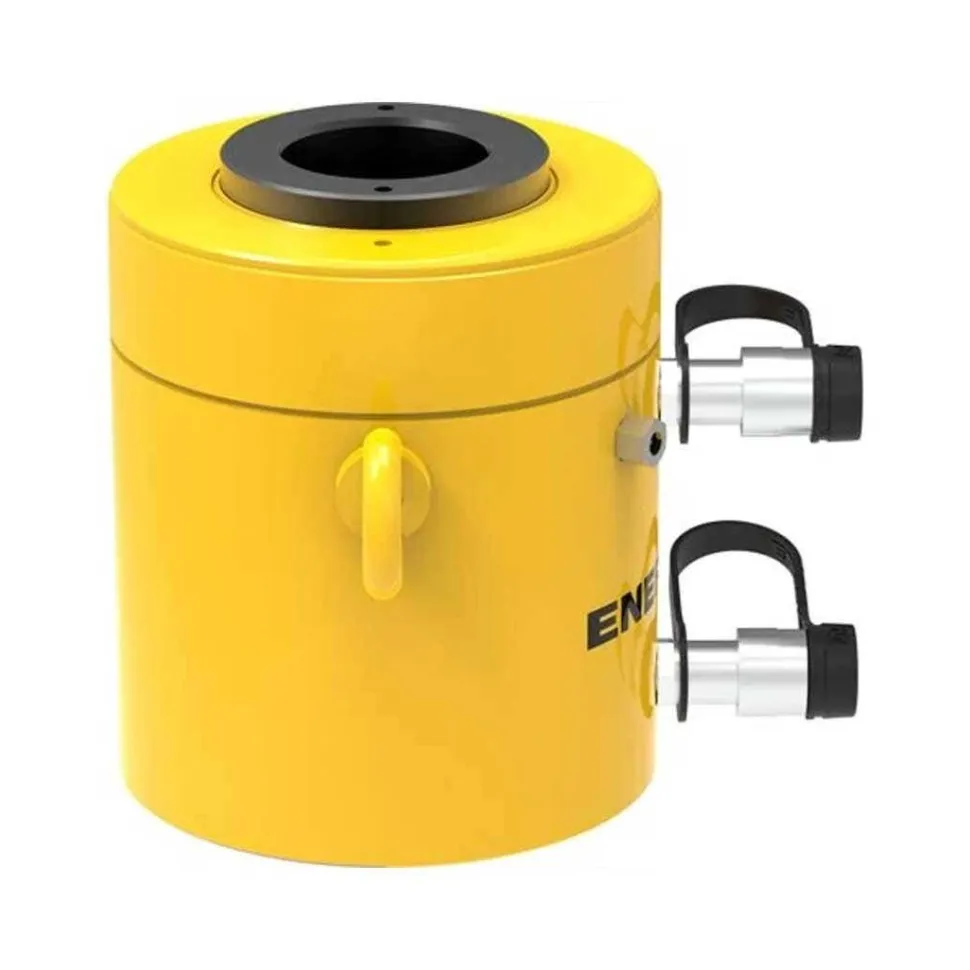

Enerpac 100 ton Capacity, 3.00 in Stroke, Double-Acting, Hollow Plunger Hydraulic Cylinder RRH1003
$128.89
Enerpac
100 ton Capacity, 3.00 in Stroke, Double-Acting, Hollow Plunger Hydraulic Cylinder RRH1003
RRH-Series Double-Acting, Hollow Plunger Hydraulic Cylinders feature a hollow bore to apply both push and pull force with precise control of the advance and retraction speed. A steel bar or cable can be run through the hollow bore of the cylinder and attached to a load to either push or pull the load, or to apply tension.
FEATURES:
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing
- Double-acting operation for fast retraction
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10,000 |
| Maximum Cylinder Capacity Advance (short tons) | 100 |
| Stroke (in) | 3 |
| Return Type | Double-Acting, Hydraulic Return |
INCLUDES:
(1) Hydraulic Cylinder
| Cylinder Effective Area Retract | 13.54 in² | 87,4 cm² |
|---|---|
| Maximum Cylinder Capacity Advance | 103 Imperial Tons | 931 kN |
| Plunger Type | Hollow |
| Weight | 135 lbs | 61 kgs |
| Surface Treatment | Paint |
| Collar Thread Length X | 2.38 in | 60 mm |
| Type | Hydraulic Cylinders |
| Cylinder Material | Steel |
| Maximum Cylinder Capacity Retractkn | 612 |
| Top To Retract Port I | 3.38 in | 85 mm |
| Cylinder Class | 100 Imperial Tons |
| Country of Origin | China |
| Collar Thread W | 8 3/8″ – 12 in | 8 3/8″- 12 mm |
| Maximum Cylinder Capacity Retract | 68 Imperial Tons |
| Base Mounting Holes Thread V | 5/8″Â – 11 |
| Collapsed Height A | 10 in | 254 mm |
| Product Line | Industrial Tools |
| Cylinder Effective Area Advance | 20.63 in² | 133,0 cm² |
| Saddle Protrusionfrom Plunger K1 | 12 mm |
| Collapsed Height A Ranges | 10.0 – 14.99 in | 255 – 381 mm |
| Stroke Ranges | 3.0 – 4.49 in | 48 – 94 mm |
| Plunger Diameter F | 5 in | 127,0 mm |
| Return Type | Double-Acting, Hydraulic Return |
| Baseto Advance Port H | 1.5 in | 38 mm |
| Base Mounting Holes Bolt Circle U | 177,8 mm |
| Plunger internal Thread O | 4″- 16 in |
| Saddle Diameter J | 4.97 in | 126 mm |
| Outside Diameter D | 8.38 in | 212 mm |
| Oil Capacity Advance | 61.88 in³ | 1011 cm³ |
| Center Hole Diameter Y | 3.13 in | 79,2 mm |
| Saddle Protrusionfrom Plunger K | 0.5 in |
| Plunger Thread Length P | 1 in | 25 mm |
| Maximum Operating Pressure Ranges psi | 10000 |
| Plunger internal Threadin O | 4″ – 16 in |
| Base Mounting Holes Thread Depth Z | 19,0 mm |
| Saddle Diameter J1 | 126 mm |
| Shipping Weight | 128.33 lbs |
| Oil Capacity Retract | 40.64 in³ | 666 cm³ |
| News Feed Product Group | Cylinders and Jacks |
| Extended Height B | 13 in | 330 mm |
| Cylinder Bore Diameter E | 6.5 in | 165,1 mm |
| Saddle Protrusion From Plunger K | 12 mm |
| Sub Types | Hollow Plunger Cylinder |
| OPT SKU | ENP-RRH1003 |
|---|---|
| MPN | RRH1003 |
| UPC/GTIN | 662005303229 |
| Product Type | Cylinder Rams Double Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 3″ |
| Tonnage | 100-Ton |
| Shipping Weight | 135.00 |
