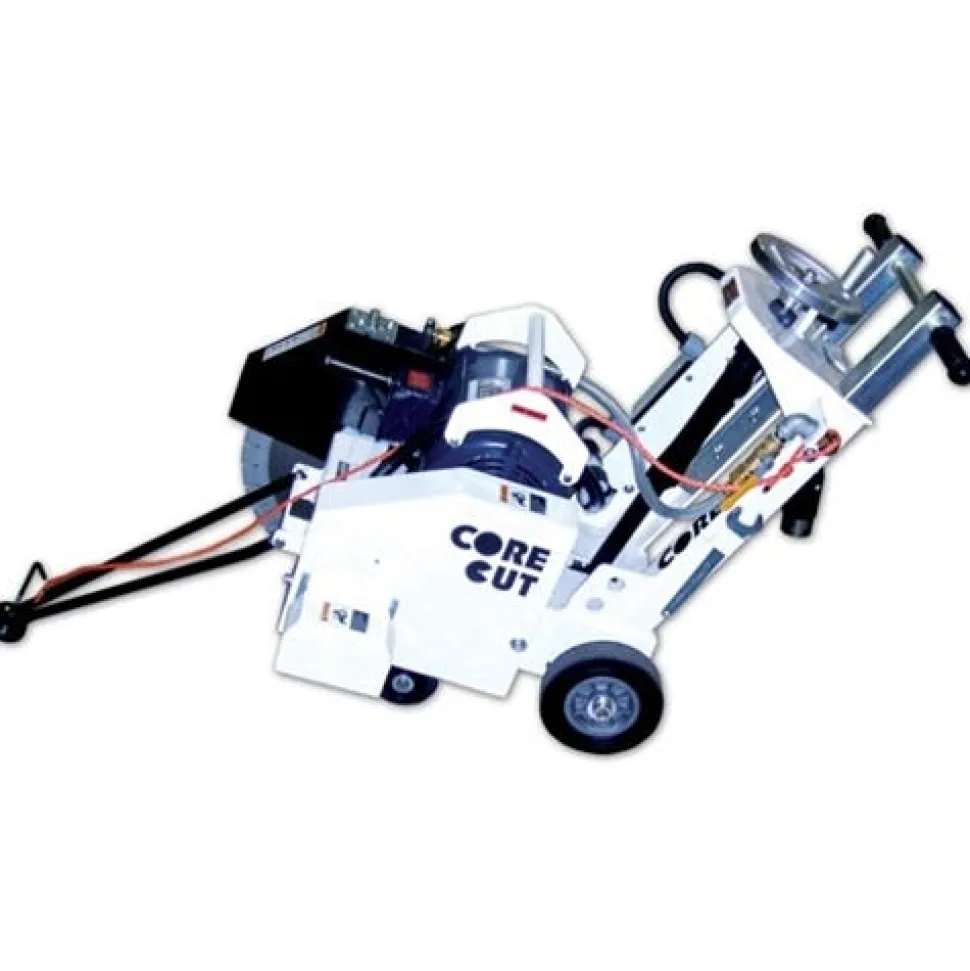

Diamond Products Core Cut 20″ 7.5HP 480V Electric Concrete Basement Saw CC1507E-20 19131

Diamond Products

20 Core Cut 7.5HP 480V CC1507E-20 Electric Concrete Basement Saw 19131

FEATURES:

• Electric powered for areas with limited access and where exhaust fumes are not allowed.
• Easy to maneuver push drive.
• Motor can be removed in limited access areas to allow for a single person operation.
• Lightweight aluminum frame.
• Screw feed raise and lower.
• Heavy duty handle design.

SPECIFICATIONS:

Maximum depth of cut with 14″ blade	4-5/8″
Maximum depth of cut with 18″ blade	6-1/2″
Maximum depth of cut with 20″ blade	7-1/2″
Blade shaft RPM	2;000
Blade shaft diameter	1-1/4″
Arbor size	1″ with drive pin
Blade Raise/Lower	Precision screw feed
Handle Bars	Adjustable

“
