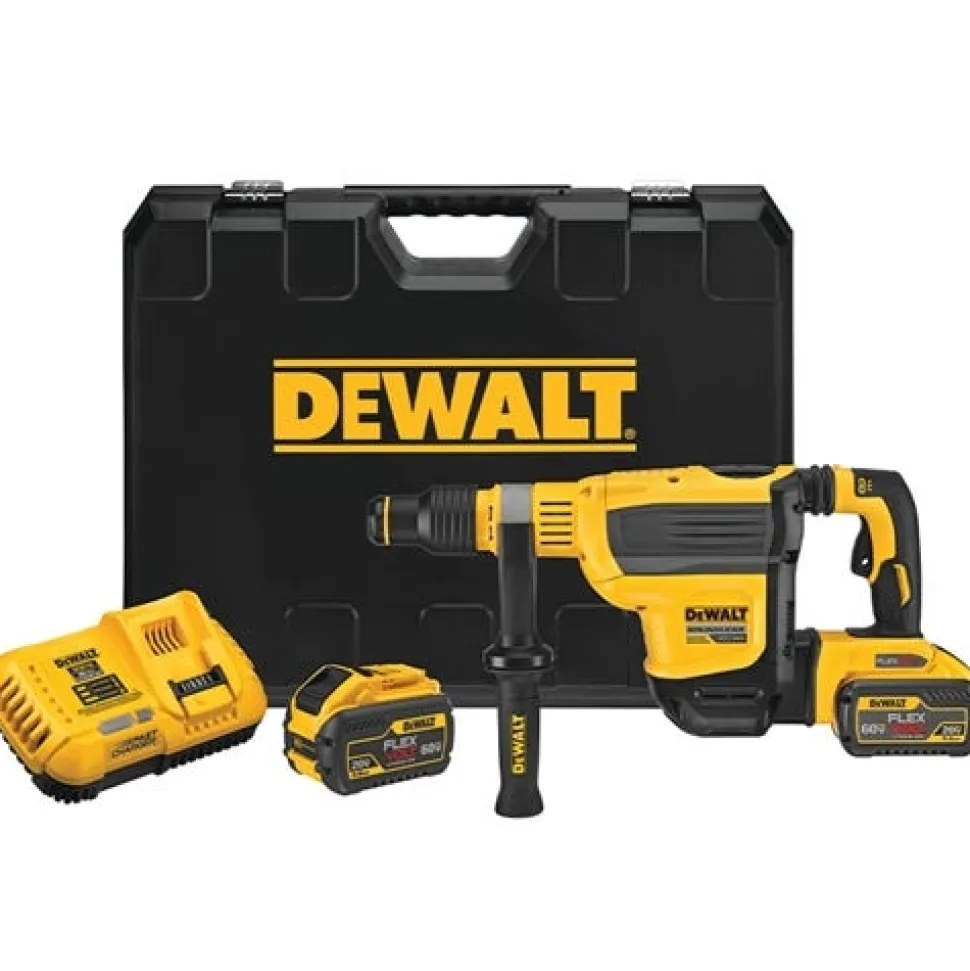

DeWalt 60V MAX 1-3/4″ Brushless SDS Max Combination Rotary Hammer Kit DCH614X2

DeWalt

60V MAX 1-3/4 Brushless Cordless SDS Max Combination Rotary Hammer Kit DCH614X2

The 60V MAX 1-3/4 in. Brushless SDS MAX Combination Hammer is a midweight; high-performance hammer that is powered by a brushless motor and a durable German engineered mechanism. It delivers 10.5 Joules of impact energy for fast drilling and chipping; even in the hardest concrete. The constant speed electronics allow the tool to maintain speed under load. The midweight design makes it ideally suited for horizontal drilling for #4 – #8 rebar dowel applications; dry coring up to 4 in.; chipping in any mid to upper wall; and ground rod driving. This hammer is part of the PERFORM & PROTECT product line; integrated with the Anti-Rotation E-CLUTCH System and the SHOCKS Active Vibration Control System. E-CLUTCH shuts down the tool in bind up situations. SHOCKS reduces vibration felt by the user at the handles; compared to rotary hammers without this feature. The DCH614 is equipped with WIRELESS TOOL CONTROL; which allows the user to link the tool to the DCV585 60V MAX dust extractor for remote extractor activation. This tool comes Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the DEWALT Tool Connect app.

FEATURES:

• 10.5 Joules of impact energy for fast drilling and chipping; even in the hardest concrete.
• Anti-Rotation E-CLUTCH System shuts down the tool in bind up situations.
• Constant speed electronics allows the tool to maintain speed under load.
• The SHOCKS Active Vibration Control System reduces vibration felt by the user at the handles; compared to rotary hammers without this feature.
• The midweight design makes it ideally suited for horizontal drilling for #4 – #8 rebar dowel applications and dry coring up to 4 in.
• Brushless motor and German-engineered mechanism.
• Ideally suited for chipping in any mid to uppwer wall and ground rod driving.
• Tag Ready so users and companies can attach the DEWALT Tag and track its location virtually anywhere via the DEWALT Tool Connect app.
• 7-position; variable-speed control for precision hole placement; chipping; and drilling with Atomic+ Undercut bits.
• Equipped with integrated WIRELESS TOOL CONTROL; which allows the user to link the tool to the DCV585 60V MAX Dust Extractor for remote extractor activation.

SPECIFICATIONS:

Blows/Min	1;450 – 2;900 BPM
Impact Energy	10.5 Joules
No Load Speed	190 – 380 RPM
Max. Diameter Core	4″
Optimal Concrete Drilling	5/8 – 1-1/4″
Vibration Control	Shocks
Tool Weight	15 lbs

INCLUDES:

• DCH614 60V MAX Combination Rotary Hammer
• 360° Side Handle
• (2) FLEXVOLT DCB609 Batteries
• Fast Charger
• Kit Box

“
