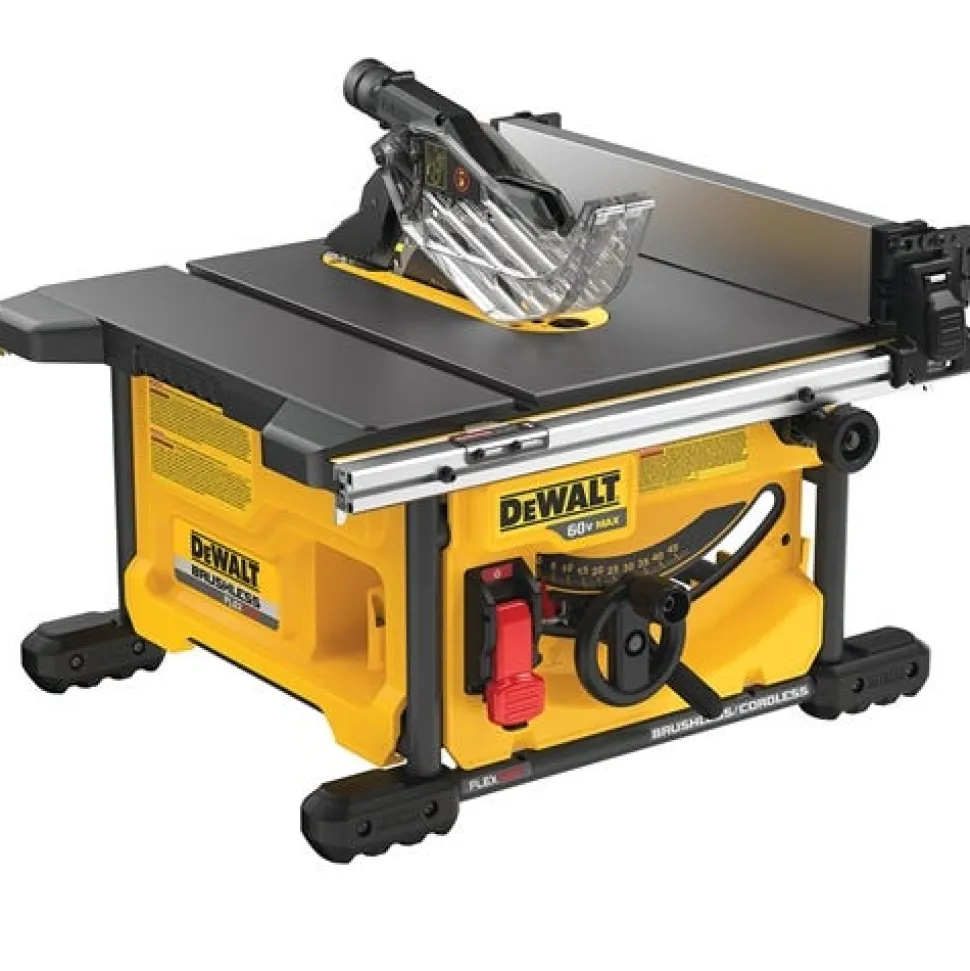

DeWalt 60V FlexVolt Max 8-1/4″ Table Saw (Tool Only) DCS7485B

DeWalt

FlexVolt 60V Max 8-1/4 Table Saw (Tool Only) DCS7485B

The FLEXVOLT 60V MAX* 8 1/4″ table saw is maximized for accuracy; capacity and runtime. The brushless motor delivers the power to cut all co mm.on materials; the rack & pinion fence allows for fast; easy adjustments and provides the capacity to rip 4×8 sheet goods. Battery and charger sold separately.

FEATURES:

• Rack and pinion telescoping fence rails make fence adjustments fast; smooth and accurate.
• 24 in. of rip capacity for ripping 4×8 plywood or OSB sheets.
• Runs off FLEXVOLT 20V/60V MAX* battery system for maximum portability.
• Site-Pro Modular Guarding System allows for tool free adjustments of the guarding.
• Power-Loss Reset prevents accidental re-starts following a power disruption when the tool is left in the on position.
• Metal roll cage base offers greater durability than plastic bases.
• On-board storage for guard; fence; wrenches and miter gauge.
• Table coating reduces friction for smoother cutting.

SPECIFICATIONS:

Arbor Size	5/8″
Blade Diameter	8-1/4″
Depth of Cut	1-3/4″ at 45°; 2-1/2″ at 90°
Dust Port Diameter	2-1/2″
Cutting Material	Wood
Max Rip	12″ Left of Blade; 24″ Right of Blade
No Load Speed	5;800 RPM
Tool Height	12.8″
Tool Length	22.8″
System	60V MAX/td>

INCLUDES:

• (1) DCS7485 60V MAX* Table Saw
• (1) Carbide Blade
• (1) Push Stick
• (1) Blade Guard
• (1) Rip Fence
• (1) Non-Thru Cut Riving Knife
• (1) Miter Gauge
• (2) Blade Wrenches

“
