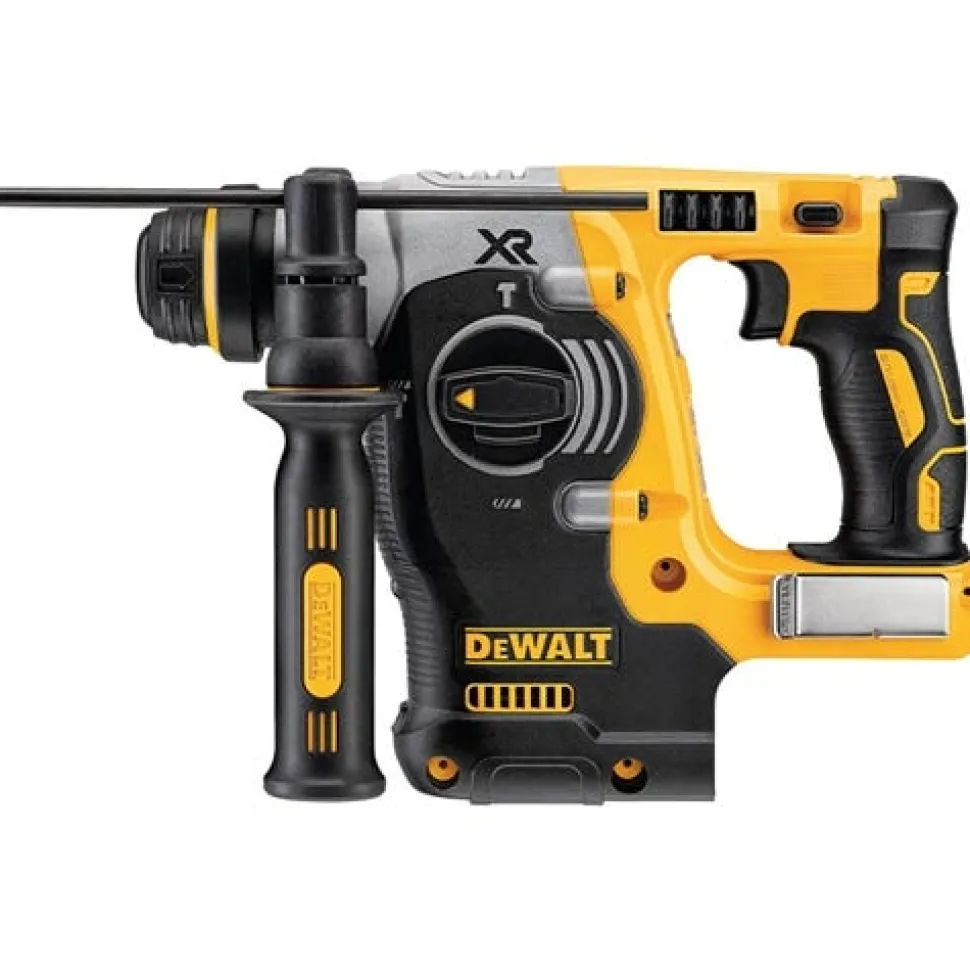

DeWalt 20V MAX 1″ XR Brushless SDS-Plus Rotary Hammer (Bare Tool) DCH273B

DeWalt

20V MAX 1 in. XR Brushless Cordless SDS Plus L-Shape Rotary Hammer DCH273B

The 20V MAX XR Brushless 1 in. Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German-engineered mechanism; delivering 2.1 Joules of impact energy. The lightweight design makes this tool ideal for rod hanging; seismic & safety attachments; cable tray & strut mounting; clamp mounting; and rail mounting. It is part of the PERFORM and PROTECT product line; integrated with the SHOCKS ACTIVE VIBRATION CONTROL System and becomes OSHA Table 1 Compliant when used with the DWH303DH On Board Extractor.

FEATURES:

• 2.1 Joules of impact energy for fast drilling in concrete.
• SHOCKS ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles; compared to rotary hammers without this feature.
• Lightweight design makes this tool ideal for rod hanging; seismic & safety attachments; cable tray & strut mounting; clamp mounting; and rail mounting.
• OSHA Table 1 Compliant when paired with DWH303DH On Board Extractor.
• Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
• Rotating Dial to set tool to a specific applicaiton mode – Drill; Hammer Drill; or Chip.

SPECIFICATIONS:

Blows/Min	0 – 4;600 BPM
Chipping	Yes
Dust Collection Ready	Yes
No Load Speed	0 – 1;100 RPM
Vibration Measurement	6.6 M/S²
Impact Energy	2.1 Joules
Optimal Concrete Drilling	3/16 – 1/2
Vibration Control	Yes – Shocks
Tool Weight	6.8 lbs

INCLUDES:

• DCH273 Rotary Hammer
• 360° Side Handle
• Depth Rod
• Adjustable Hook

“
