CS Unitec PTX Eco Smart Linear Grinding Surface Prep Kit 47004A

• CS Unitec

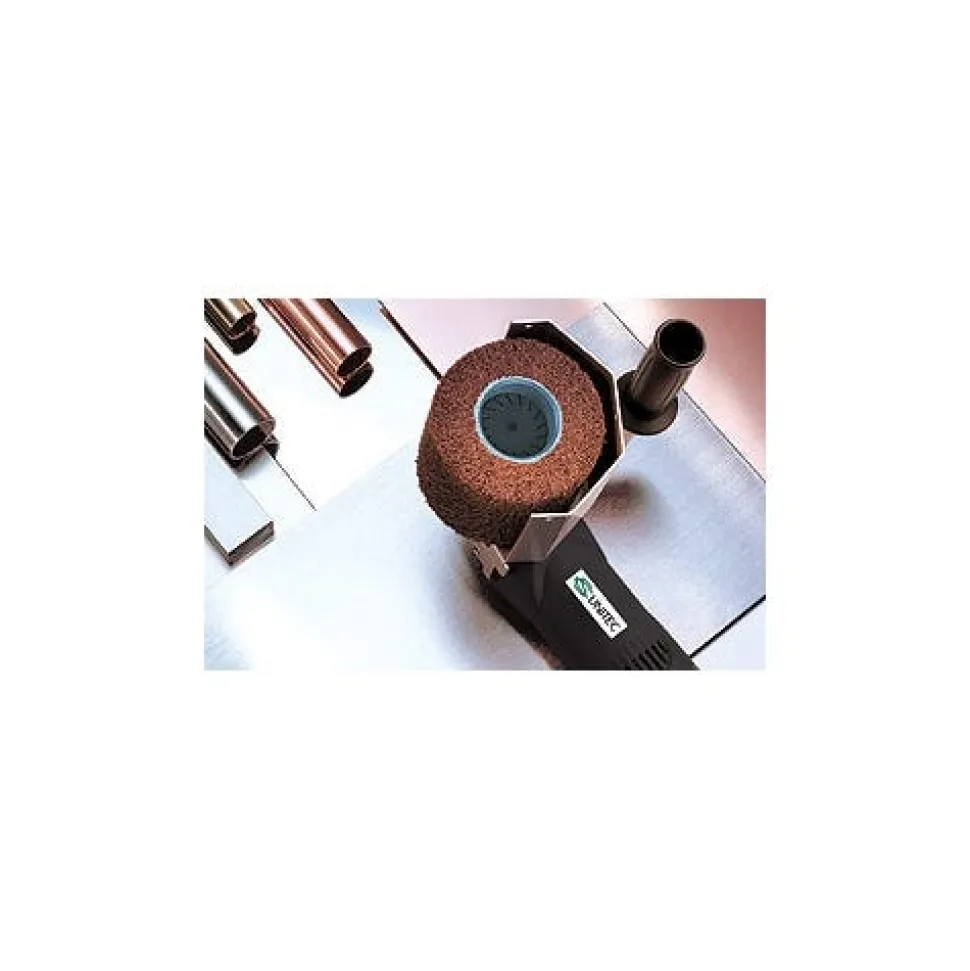

• PTX Eco Smart is a multi-functional grinding and polishing system for flat surfaces and open or closed pipe constructions. It grinds from coarse to very fine finishes and burnishes to a high-gloss finish. It enhances stainless steel; steel and nonferrous metals including aluminum; brass; bronze and copper; as well as wood and rigid plastic.
• Balanced straight-line handling; high torque and electronic speed control enable the PTX to easily produce matte; satin and other decorative surfaces up to a mirror finish. Besides fine finishing; the PTX is ideal for coarse grinding to remove welds; deep scratches; oxidation; rust and paint.

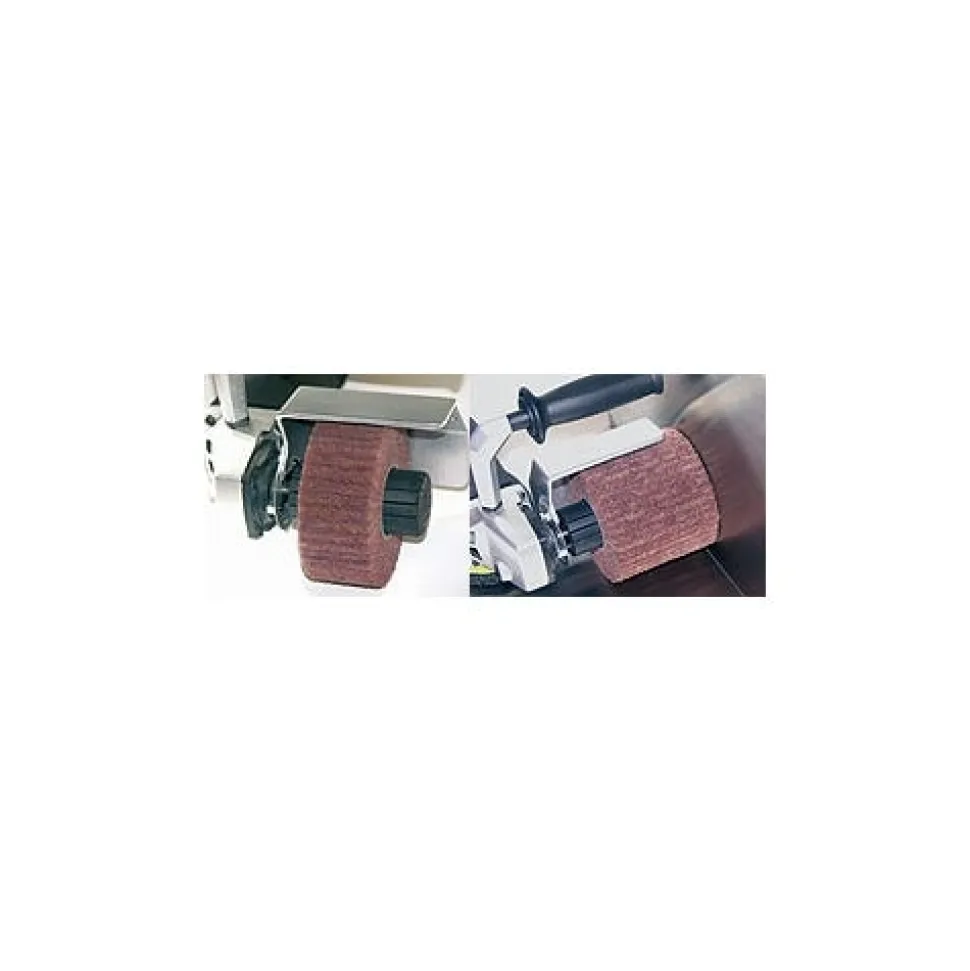

• PTX Eco Smart features a newly developed abrasive mounting system. This unique system allows grinding and polishing wheels to be changed in seconds; without tools or hardware. Simply slide the wheels and accessories onto the finned; rigid rubber shaft. They secure themselves automatically when the machine turns. (Note: Shaft supplied with keyway and finned shaft adapter.)
• The finned shaft design ensures absolutely no vibrations during operation and 100% concentricity. The main savings compared to other linear grinders comes from the cost of abrasives. The elimination of an internal core means the abrasives wheels can be produced less expensively; while delivering the same high-quality results.
• Adjustable handle suitable for right and left-handed users. Anti-vibration handle for comfortable; fatigue-free working.
• Simple speed control during operation. Stable speed thanks to tacho-generator.
• QUICK-LOCK cable for fast; easy replacement if cable is damaged. 10 ft.; included.

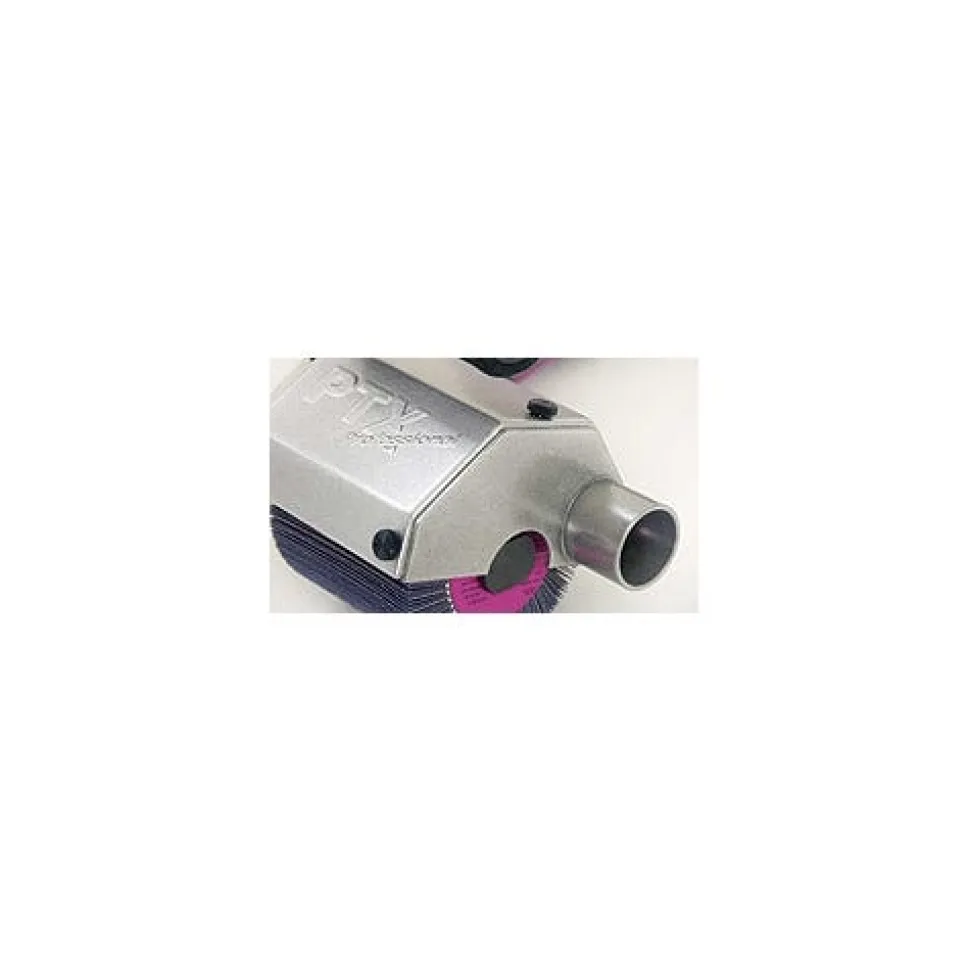

• Infinitely adjustable cover guard with securing points for the extraction cover. Part Number: 40005
• Extended polycarbonate cover guard for grinding wheel widths up to 6″. Part Number: 52706
• Hollow core shaft adapter for roller wheel widths up to 6″ and vibration-free operation. Part Number: 42004
• SPECIFICATIONS:
• Order number: 47002A
• Power: CSA15 Amp (1650 Watts)
• 110 Volt / 60 Hz
• (Also avail: 230 V / 50 Hz)
• Speed control dial: Variable speed control from 1000 to 3800 RPM with tachogenerator for constant speed; even under load
• Wheel width: up to 4 (or 6 wide abrasives)
• Wheel diameter: up to 4-1/2
• Weight: 7.25 lbs.
• Standard equipment: 4″ Interleaf (combi) wheel P/N 47312
• Shaft Adapter P/N 42004

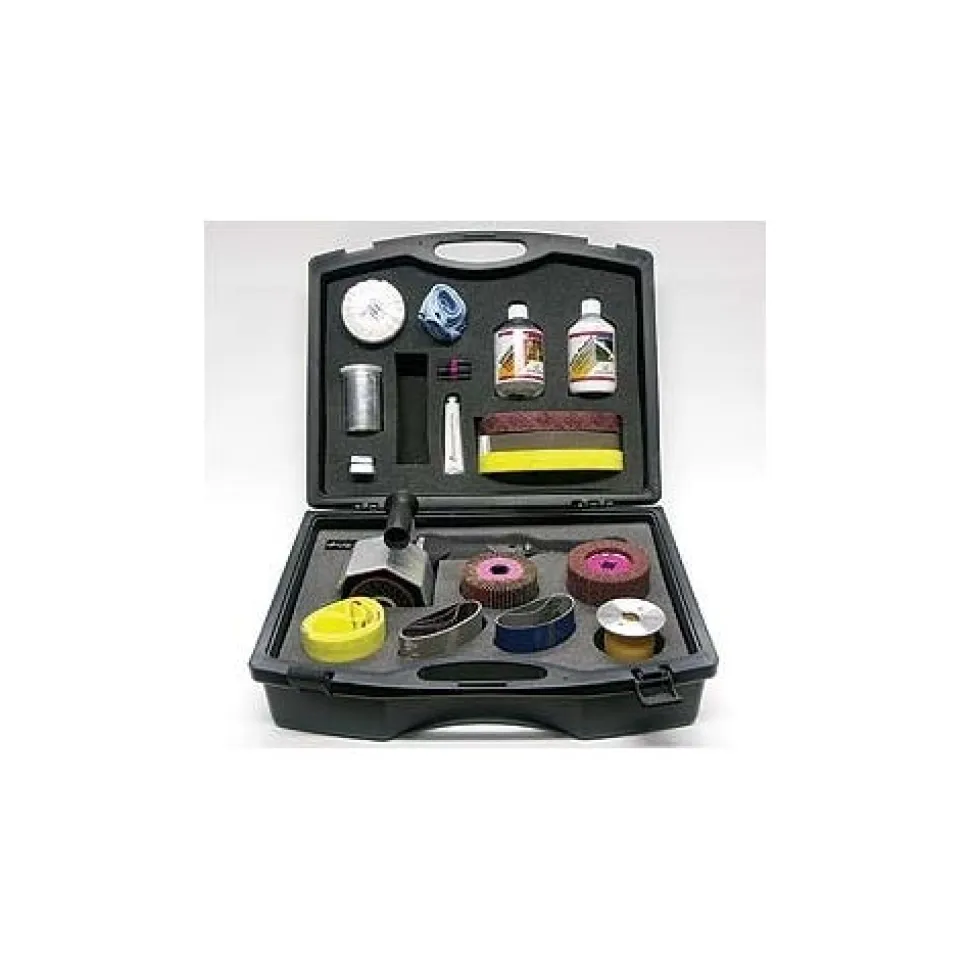

• Includes: 1 PTX Eco Smart machine; 1 Professional Case (P/N 80002); 1 40 grit flap wheel; 4″ x 4-1/4″ (P/N 47211); 1 80 grit interleaf (combi) wheel; 4″ x 4-1/4″ (P/N 47312);1 Expansion roller; 3-1/2″ x 4″ (P/N 47005); 2 80 grit grinding belt sleeve; 3-1/2″ x 4″ (P/N 42080);1 Fine fleece (Nonwoven) sleeve; 3-1/2″ x 4″ (P/N 42012);1 Medium fleece (Nonwoven) sleeve; 3-1/2″ x 4″ (P/N 42011); 2 A45 inTZin Pyramid sleeves; 3-1/2″ x 4″ (P/N 42245); 2 A30 inTZin Pyramid sleeves; 3-1/2″ x 4″ (P/N 42230); 2 A16 inTZin Pyramid sleeves; 3-1/2″ x 4″ (P/N 42216); 2 A06 inTZin Pyramid sleeves; 3-1/2″ x 4″ (P/N 42206); 3 SuperPolish sleeves; 3-1/2″ x 4″ (P/N 42013N); 1 Belt driving roller (P/N 47006); 2 80 grit grinding belts; 1.2″ x 24″ (P/N 49080); 1 Medium fleece (Nonwoven) belt; 1.2″ x 26″ (P/N 49002); 2 A45 inTZin Pyramid belts; 1.2″ x 24″ (P/N 49345); 2 A30 inTZin Pyramid belts; 1.2″ x 24″ (P/N 49330); 2 A16 inTZin Pyramid belts; 1.2″ x 24″ (P/N 49316); 2 A06 inTZin Pyramid belts; 1.2″ x 24″ (P/N 49306); 3 SuperPolish belts; 1.2″ x 26″ (P/N 49004N); 1 Mini high gloss polishing paste; pink (P/N 40015T); 2 Mini polishing pastes; white and blue [P/N 40013 (white) P/N 40014 (blue)]; 1 PTX lime spray can (P/N 40016); 5 Microfiber cloths (P/N 40030); 1 Brilliance clean spray bottle (P/N 40050); 1 INOX-protect spray bottle (P/N 40040).

“
