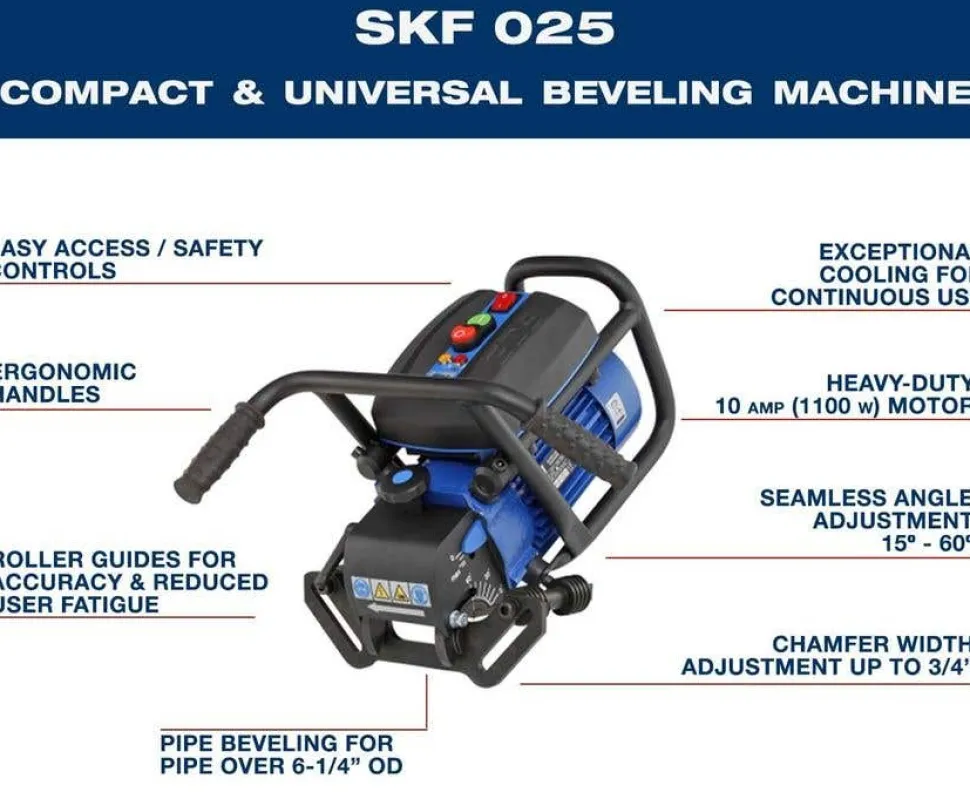

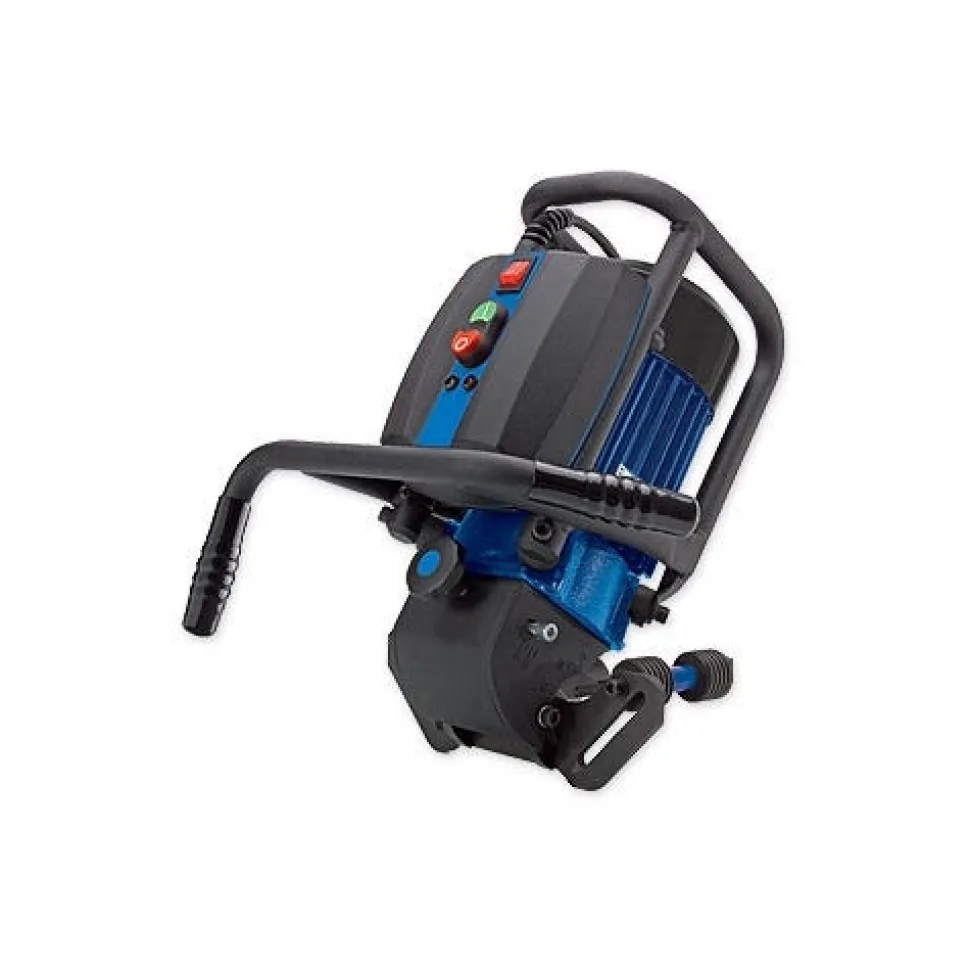

CS Unitec Portable Beveling Machine SKF 025

• CS Unitec
• Deburring and Chamfering Technology
• Continuously adjustable angle (0 to 60) and land width up to 3/4
• Robust design; single operator control and easy handling; designed for continuous operation with smooth roller guides
• Anti-vibration system protects electronics and allows for more comfortable operation
• Includes one milling head and 10 indexable inserts for fast metal removal and extended tool life

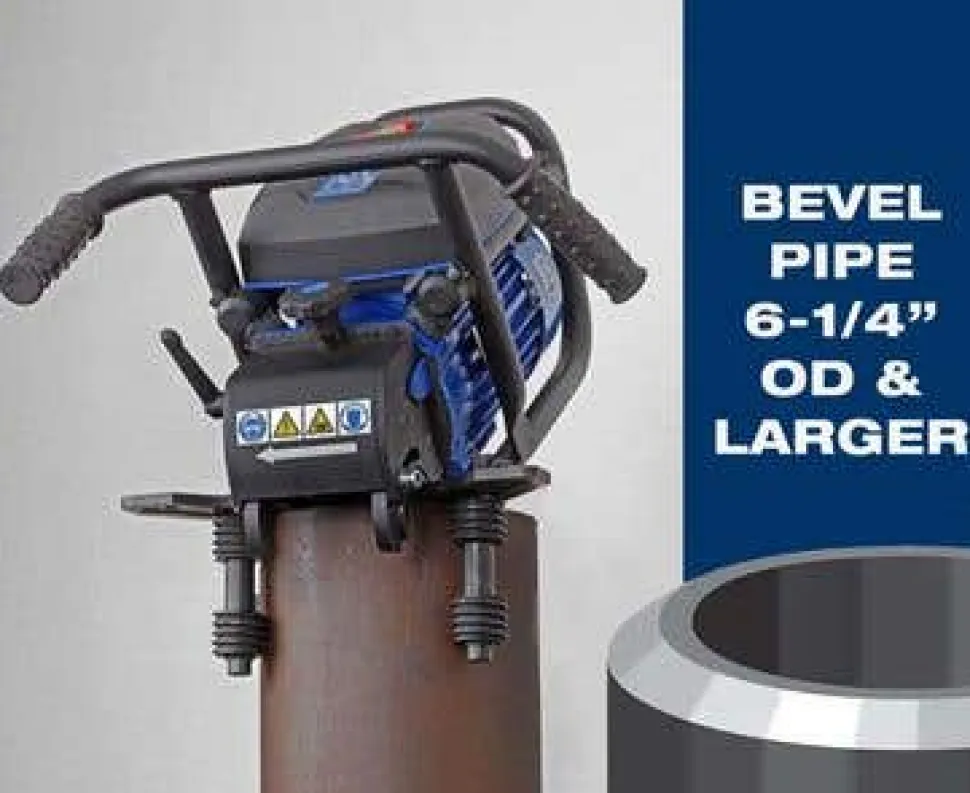

• Work on welding angles and weld preparation on pipes/tubes with a minimum OD of 6-1/4″ (160mm) with built-in pipe roller guide; ideal for beveling pipe 6-1/4″ OD and larger
• Beveling angle 0 – 60
• Bevel width (max.)** 3/4″
• Motor power 10 Amp
• Voltage 110 V (220 V / 50 Hz also available)
• Cutting speed 1800 SFPM
• Cutting inserts 10
• Dimensions (LxH): 16-1/2″ x 13″
• Weight: 43 lbs.

“
