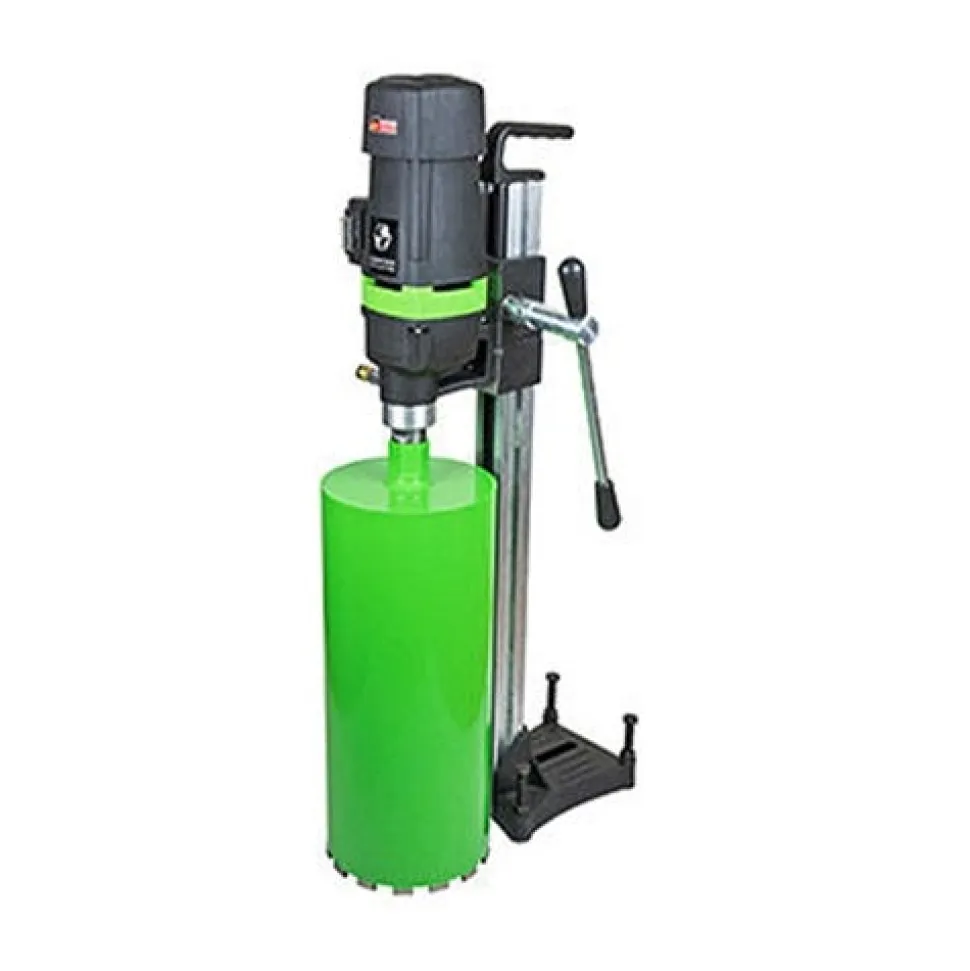

CS Unitec Eibenstock 8″ Single-Speed Rig-Mounted Core Drill DBE 201

CS Unitec

18 Amp Diamond Core Drill Rig w/ Stand DBE 201

*DBE 160 has been discontinued and is replaced by DBE 201.*

The most powerful; compact and lightweight core drill rig in the industry.Ideal for plumbing; mechanical and electrical construction; as well as civil engineering and landscape construction.Wet drilling in reinforced concrete; natural stone and asphalt.

FEATURES:

• Powerful 18 Amp motor.
• 1-speed oil bath gearbox – optimal lubrication.
• Mechanical safety clutch.
• Integrated water supply.
• Stainless steel combination spindle for connecting to 5/8 and 1¼” drill bits.
• Handy; robust and economical – motor and rig as a complete unit.
• Space-saving; compact drilling unit – lightweight.
• Switch with GFCI overcurrent cut-off protection against overloading of the motor.
• Spring-loaded carbon brushes – protect the motor.

SPECIFICATIONS:

Power input	18 Amp
Rated Voltage	110 V
Load Speeds (RPM)	450
No-Load Speed (RPM)	675
Drilling Diameter	8″
Spindle Connection	1-1/4″x7 UNC 5/8″x11 UNC (optional)
Column Length	31″
Hub	21-3/4″
Weight	34 lbs.

“
