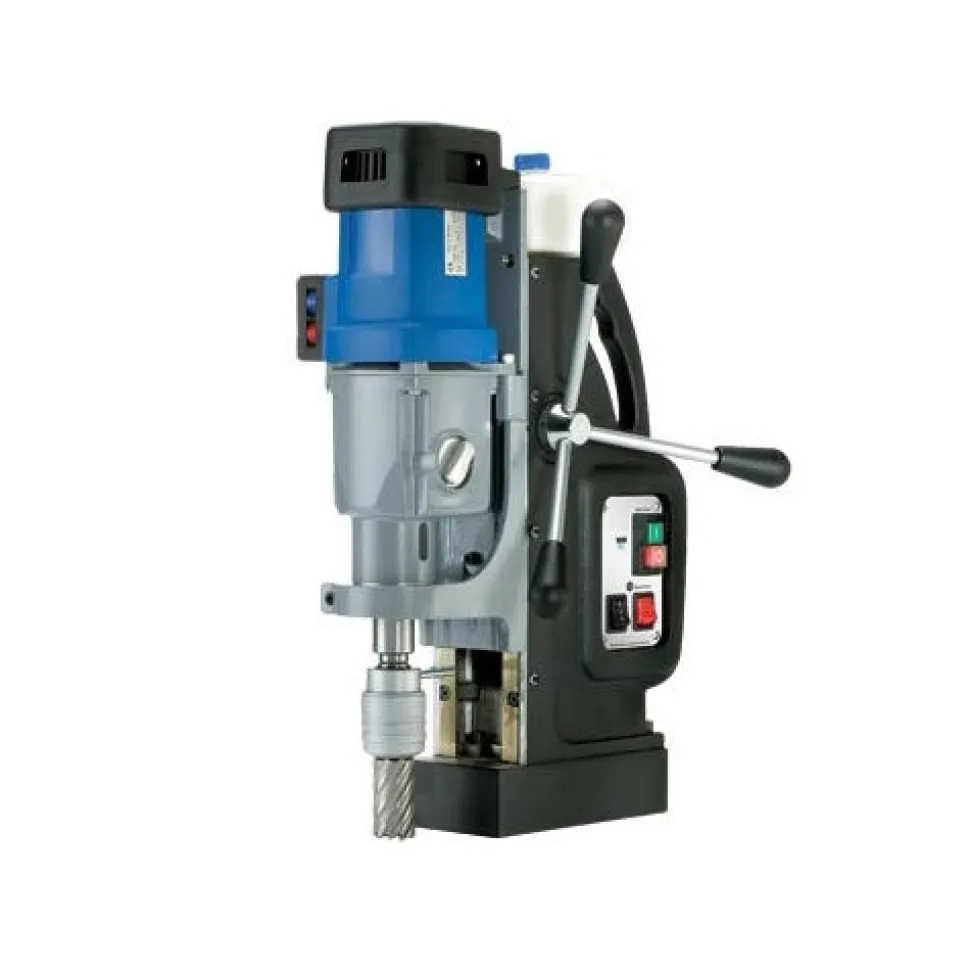

CS Unitec 4″ Magnetic Drill Reversible Variable Speed MAB 825

CS Unitec

Magnetic Drill 4 Reversible Variable Speed MAB 825

FEATURES:

• 16 Amp double-insulated motor
• 4-speed oilbath gearbox forapplications requiring high power
• Designed for continuous use
• Infinitely variable torquecontrol and full-wavecontrol electronics
• Uses annular cutters up to4-1/16″ dia.
• Twist drilling and reamingcapacities up to 1-1/4″ dia.
• Tapping capacity up to 1-1/8″ dia.
• Integrated cutting oil reservoir
• Automatic internal lubrication
• Quick-change keyless cuttersystem for 3/4″ Weldon shank
• Arbor for 1-1/4″ Weldon shank
• Also includes manual arbor for3/4″ Weldon shank (MT3) withset screws
• Green/Red LED magnetic forceindicator for safe operation
• Internal cable routing
• Simple; ergonomic arrangementof controls for one-handed operation
• Emergency-off function
• Optional 3/4″ geared chuck
  (Part No. IBC 21);this model easilyconverts to astandard drill pressfor conventional twist drills.

INCLUDES:

• 1 Magnetic drilling machine
• 1 Quick-change arbor system
• KEYLESS Weldon 3/4″
• 1 Manual arbor with set screws;
• Weldon 3/4″; MT3
• 1 Arbor 11/4″ Weldon; MT3*
• 4 Pilot pins – 1″; 2″; 3″ and 4″ depth
• 1 Safety chain
• 1 Hexagon socket screw key SW 6
• 1 Drift key MT3
• 1 Warranty certificate
• 1 Carrying case**

SPECIFICATIONS:

“
