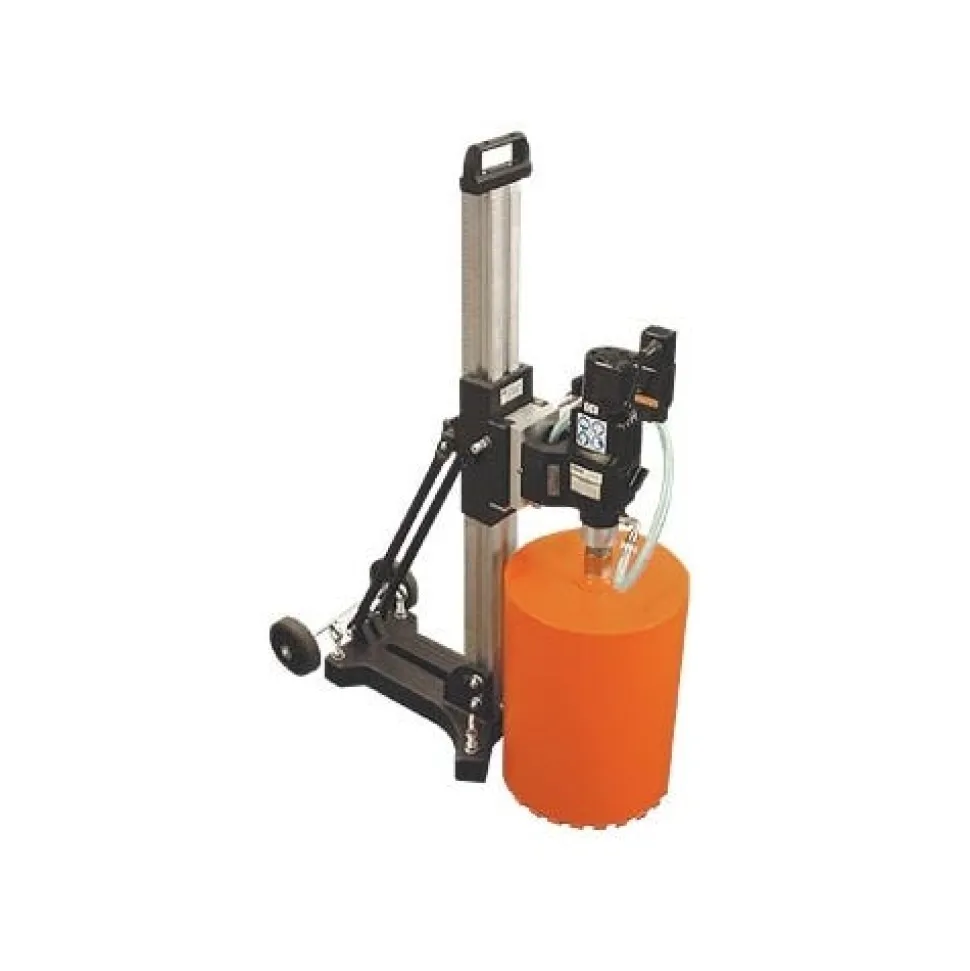

CS Unitec 4.2 HP 12″ Hydraulic Core Drill 2 1327 0010 SA

• CS Unitec
• 4.2 HP 12″ Hydraulic Core Drill 2 1327 0010 SA
• Powerful 4.2 HP motor and heat-treated gears
• Drill holes up to 12″ diameter
• Rugged 3-speed gearbox with mechanical slip clutch
• Ideal for heavy-duty wet drilling in concrete; reinforced concrete; asphalt and natural stone
• Self-regulating oil flow control required volume of 6 GPM; flow up to 13 GPM is automatically bypassed back to the tank
• SPECIFICATIONS:
• Power: 4.2 HP (3.1 kW)
• RPM Free Speed: 380 – 900 – 1800
• Connecting Threads: 1-1/4″x7 UNC Male 1/2″ Female Optional: 5/8″-11
• Weight: 69 lbs. (with anchor stand)
• Oil Pressure: 2000 PSI (140 Bar)
• Oil Flow with Control Valve: 6 GPM (22 LPM); up to 13 GPM Allowed
• Hose Diameter: 1/2″ ID Hose with 3/8″ FF (HTMA) Couplings
• Water Connection: 3/4″ Gardena system (included)
• Drill Motor with Vacuum Stand: Order Model 2 1327 0010 SV (includes P/N 253.511)

“
