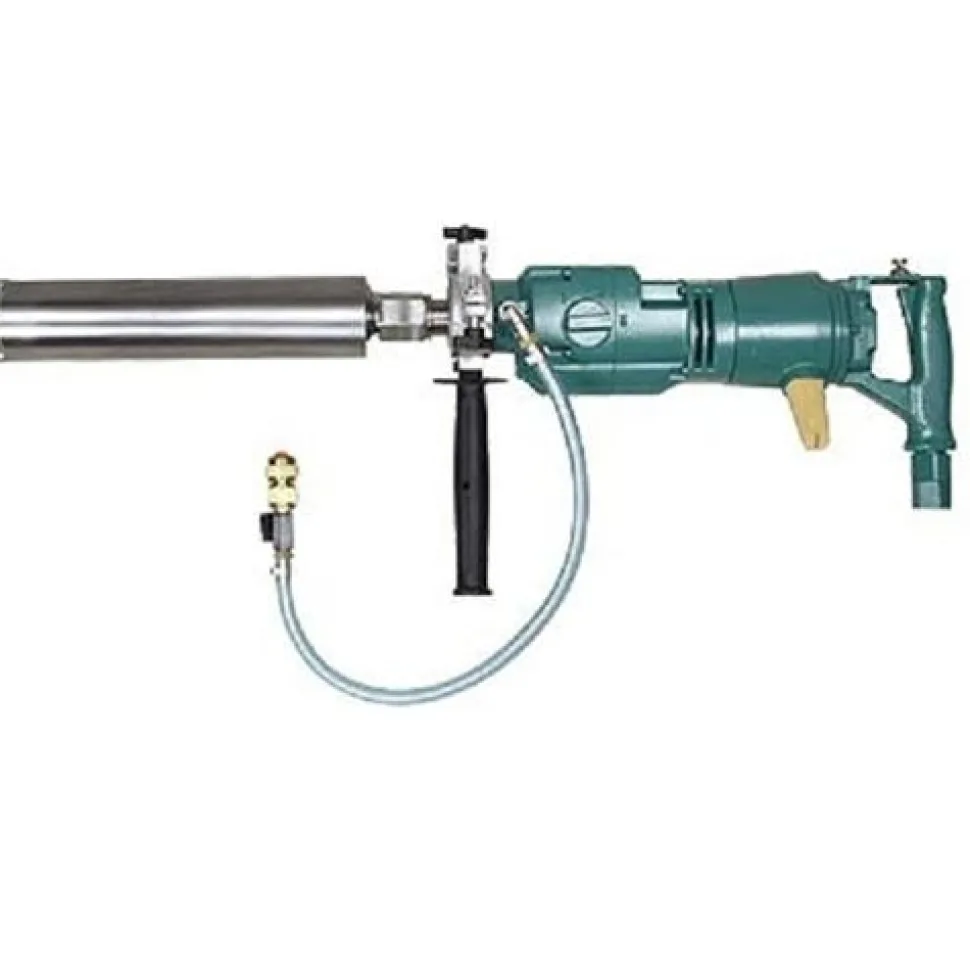

CS Unitec 3.8 HP 6″ Air Core Drill 2 1335 0010

• CS Unitec
• 3.8 HP 6″ Air Core Drill 2 1335 0010
• Ideal for drilling holes in walls; floors; ceilings; refractory brick and for all concrete anchoring systems. Two models; 2.1 or 3.8 HP.
• Standard Equipment:
• Safety Slip Clutch
• 3-Speed Mechanical Gear Box
• with heat-treated gears
• Built-in Water Swivel
• 1-1/4″ x 7 UNC Spindle
• 5/8″ x 11 UNC Adapter
• 360 Rotatable Side Handle
• Centering Aid P/N 2 1315 6800
• Drilling Capacity:
• Hand-Held Drilling – 1/2″-3″ dia.
• Rig-Mounted Drilling – 1/2″-6″ dia.
• *Do not use core bits larger than 6″ dia. Use gear 1 in a drill stand only.
• SPECIFICATIONS:
• 3 Speeds (RPM): 300; 700; 1350
• Air Motor: 3.8 HP (2.8 kW)
• Air Consumption: 123 CFM
• Air Pressure: 90 PSI
• Air Connection: 3/4″ NPT
• Bit Connection: 1-1/4″x7 UNC; 5/8″x11 UNC; G 1/2″
• Weight: 21 lbs.

“
