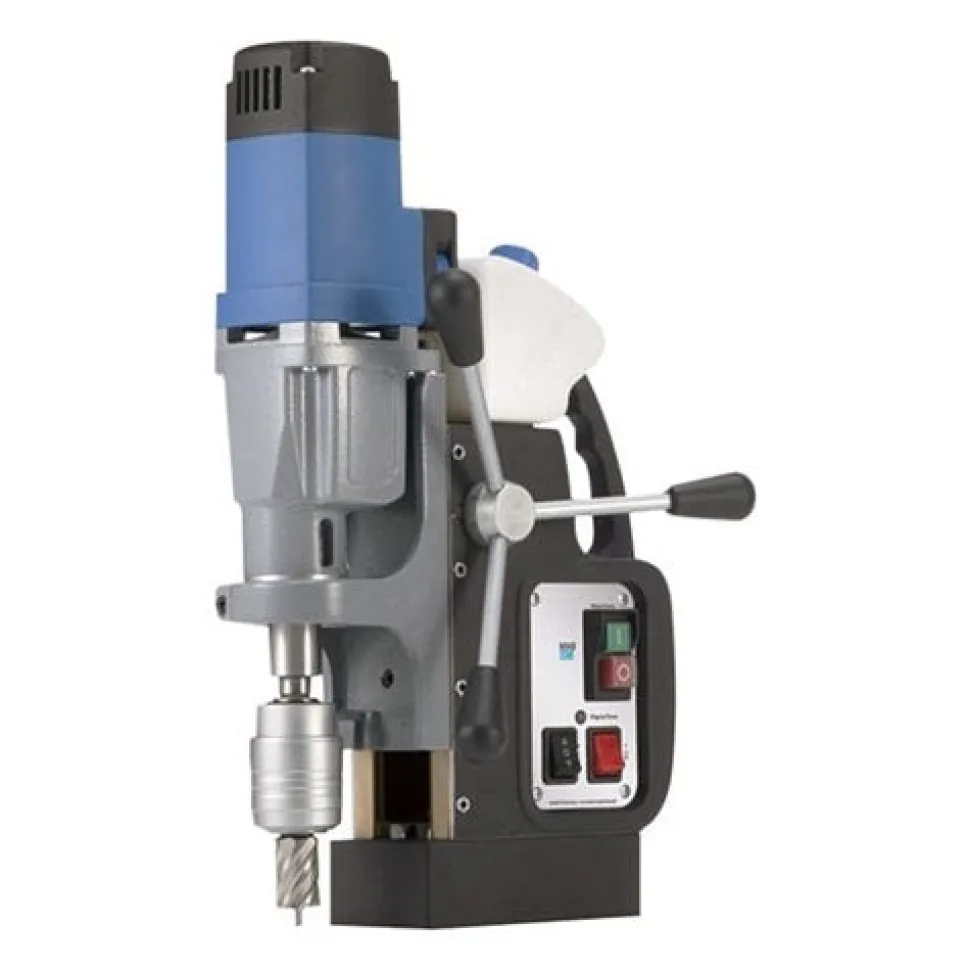

CS Unitec 2″ Magnetic Drill Reversible Variable Speed Swivel Base MAB 485 SB

CS Unitech

MAGNETIC DRILL 2 REVERSIBLE VARIABLE SPEED SWIVEL BASE MAB 485 SB

FEATURES:

• Model MAB 485 SB featuresa swivel base providing 20°movement left and right and 5/8″forward and backward.
• Reversible
• 10.5 Amp doubleinsulated motor
• 17-1/4″ high; 29 lbs.
• High-speed; variable-speed oilbath gearbox; ideal for annular cutters and twist drills
• Designed for continuous use
• Intelligent electronic torque control
• Uses annular cutters up to 2-1/6″ dia.
• Twist drilling capacity up to 7/8″ dia.
• Tapping capacity 3/16″ to 15/16″ dia.
• Integrated cutting oil reservoir
• Automatic internal lubrication
• Swivel base (model MAB 485 SB)
• Quick-change keyless cutter system for 3/4″ Weldon shank; standard
• Also includes manual arbor for 3/4″ Weldon shank (MT2) with set screws
• Optional Geared Chuck
  With an optional 1/2″ gearedchuck (Part No. IBC 18); thismodel easily converts to astandard drill press with a5″ stroke for conventional twistdrills. A 3/4″ geared chuck is alsoavailable (Part No. IBC 22).

SPECIFICATIONS:

Motor Power	10.5 Amp / 110 Volt
Weight	29 lbs.
Stroke	6-1/3″
Tapping Capacity	15/16″ dia.
Hole Capacity	2-1/16″ dia.
Twist Drill Capacity	7/8″ dia.
Speeds	50-250 and 100-450 RPM
Magnet Base Size	6-5/8″ L x 3-1/3″ W
Dimensions	17-1/4″ H x 11-5/8″ L x 7″ W
Magnetic Force (1″ plate)	3750 lbs.
Arbor Bore	3/4″ Weldon Shank
Spindle	MT2
Automatic Lubrication	Included
Swivle Base	Included

INCLUDES:

• 1 Magnetic drilling machine
• 1 Quick-change arbor system
• KEYLESS Weldon 3/4″
• 1 Manual arbor with set screws;
• Weldon 3/4″; MT2
• 2 Pilot pins – 1″ and 2″ depth
• 1 Safety chain
• 1 Drift key MT2
• Tap collet adapters – 3/8″; 1/2″ and 3/4″
• 1 Warranty certificate

“
