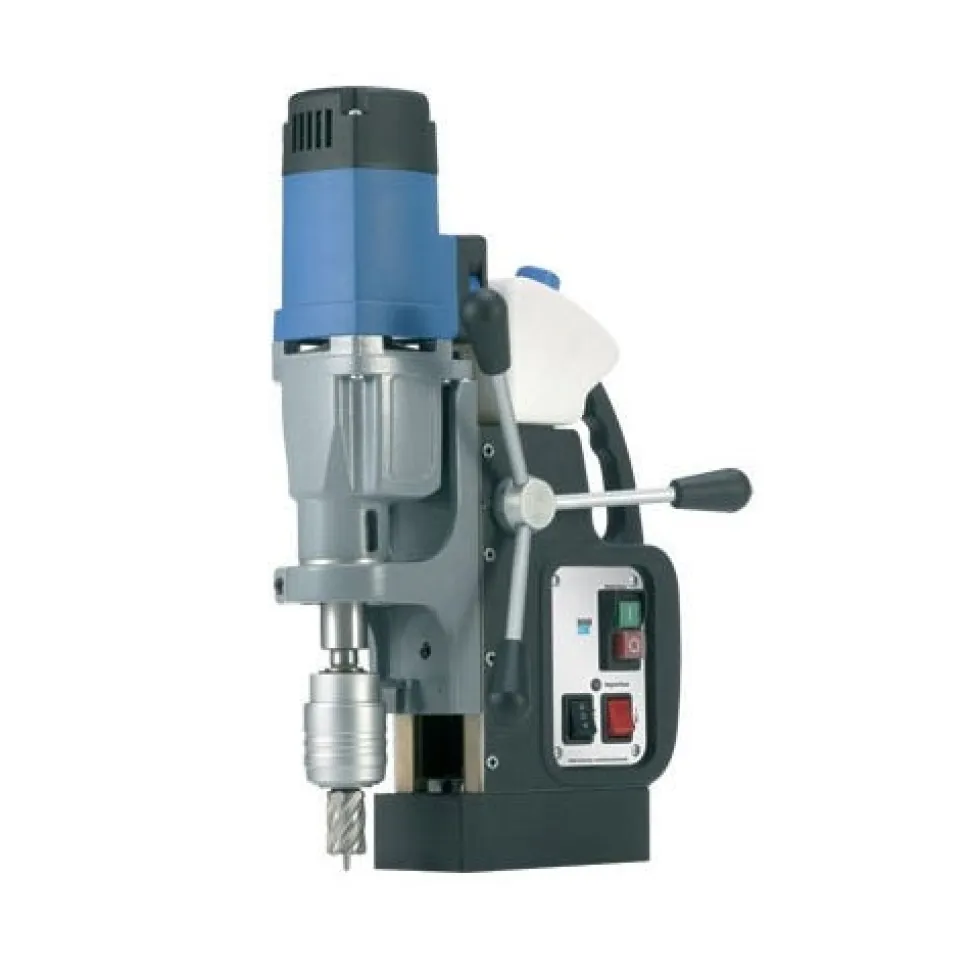

CS Unitec 2″ Magnetic Drill Reversible Variable Speed MAB 485

CS Unitech

MAGNETIC DRILL 2 REVERSIBLE VARIABLE SPEED MAB 485

FEATURES:

• 10.5 Amp doubleinsulated motor
• 17-1/4″ high; 29 lbs.
• High-speed; variable-speed oilbath gearbox; ideal for annular cutters and twist drills
• Designed for continuous use
• Intelligent electronic torque control
• Uses annular cutters upto 2-1/6″ dia.
• Twist drilling capacity upto 7/8″ dia.
• Tapping capacity 3/16″to 15/16″ dia.
• Integrated cutting oil reservoir
• Automatic internal lubrication
• Optional Geared Chuck – Not Included
With an optional 1/2″ gearedchuck (Part No. IBC 18); thismodel easily converts to astandard drill press with a5″ stroke for conventional twistdrills. A 3/4″ geared chuck is alsoavailable (Part No. IBC 22).

SPECIFICATIONS:

Motor Power	10.5 Amp / 110 Volt
Weight	29 lbs.
Tapping Capacity	15/16″ dia.
Hole Capacity	2-1/16″ dia.
Twist Drill Capacity	7/8″ dia.
Speeds	50-250 and 100-450 RPM
Magnet Base Size	6-5/8″ L x 3-1/3″ W
Dimensions	17-1/4″ H x 11-5/8″ L x 7″ W
Magnetic Force (1″ plate)	3750 lbs.
Arbor Bore	3/4″ Weldon Shank
Spindle	MT2
Automatic Lubrication	Included

INCLUDES:

• 1 Magnetic drilling machine
• 1 Quick-change arbor system KEYLESS Weldon 3/4″
• 1 Manual arbor with set screws; Weldon 3/4″; MT2
• 2 Pilot pins – 1″ and 2″ depth
• 1 Safety chain
• 1 Drift key MT2 (Order No. 1960002)
• Tap collet adapters -1/4″; 3/8″; 1/2″ and 3/4″
• 1 Warranty certificate
• Standard Equipment also includes molded plastic carrying case; operating manual; auto lubrication; safety strap; carbin hook and allen keys.

“
