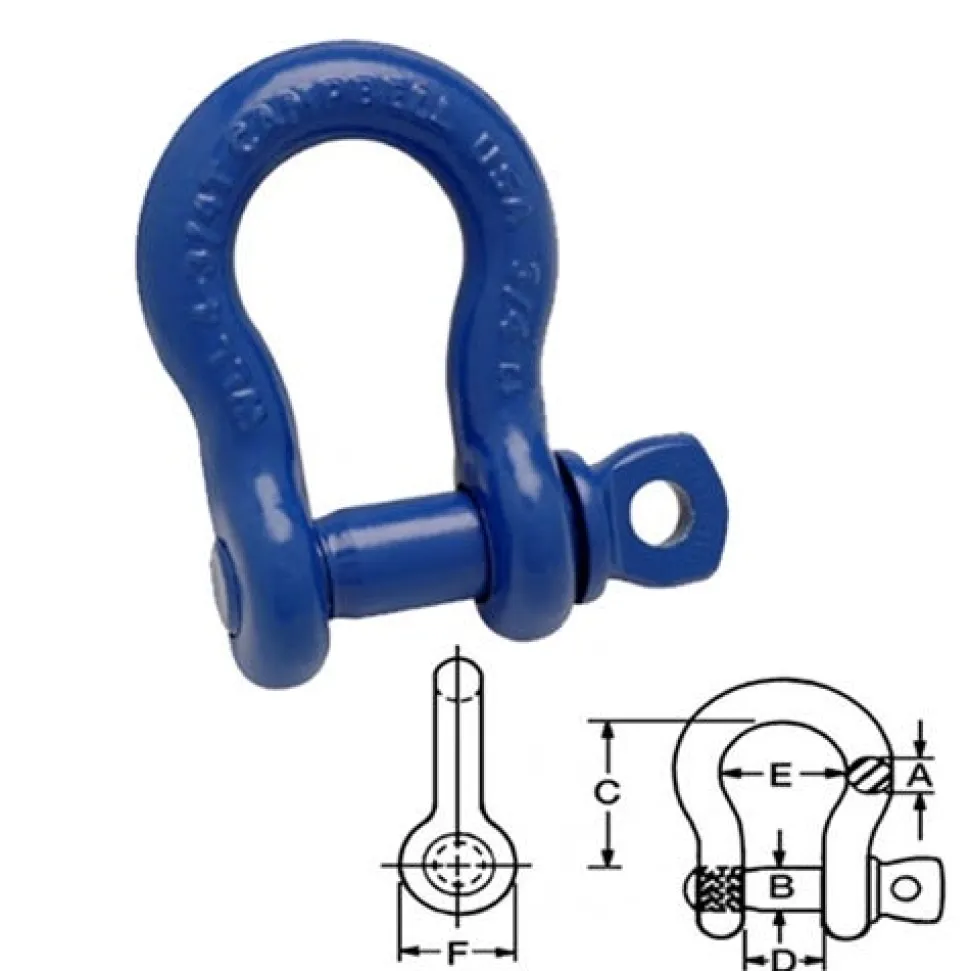

Campbell 5/8″ Anchor Shackle 3-1/4 Ton Screw Pin Forged Steel Painted 5411005

$11.99

SKU: SKUh3WaBC4CPC Categories: Hardware & Jobsite Supplies, Hoists, Slings & Rigging Tag: Campbell Chain & Shackle Brand: Campbell Chain & Shackle

Description
Reviews (0)

Additional Details

Campbell
Shackle Bodies Are Drop-Forged Carbon Steel
Self Colored (Painted Blue)
C-419-S Shackles Meet the Design Requirements of Federal Specification RR-C-271; Type IVA; Grade A; Class 2
Working Load Limit; Size; Manufacture Name; Date Code and USA Permanently Marked on Each Shackle
Statistically Tested for Impact Resistance; Tensile Strength; Hardness; Ductility and Fatigue
419 Series Shackles Meet or Exceed All Manufacturing Requirements of the ASME B30.26 Rigging Hardware. These Include the Material Ductility Requirement (Section 26-1.1.2); the Design Factor Requirement (Section 26.1.2); the Identification Requirement (Section 26-1.5.1); and the Effective Temperature Range (Section 26-1.6.1). the Shackles Can Be Proof Tested in Accordance with Section 26-1.4
Certification Available Upon Request
6 to 1 Design Factor
Pins and Bolts Are Heat-Treated and Made of Alloy Steel
DO NOT EXCEED THE WORKING LOAD LIMIT
Trade Size Fractional 5/8 in
Working Load Limit Short Ton 3-1/4 T
Length Tolerance (+/-) 1/8 in
Width Tolerance (+/-) 1/16 in
B Dimension 3/4 in
C Dimension 2-7/16 in
D Dimension 1-1/16 in
E Dimension 1-9/16 in
F Dimension 1-7/16 in
Weight Each (lbs.) 1.50 lb
Made in USA Yes
