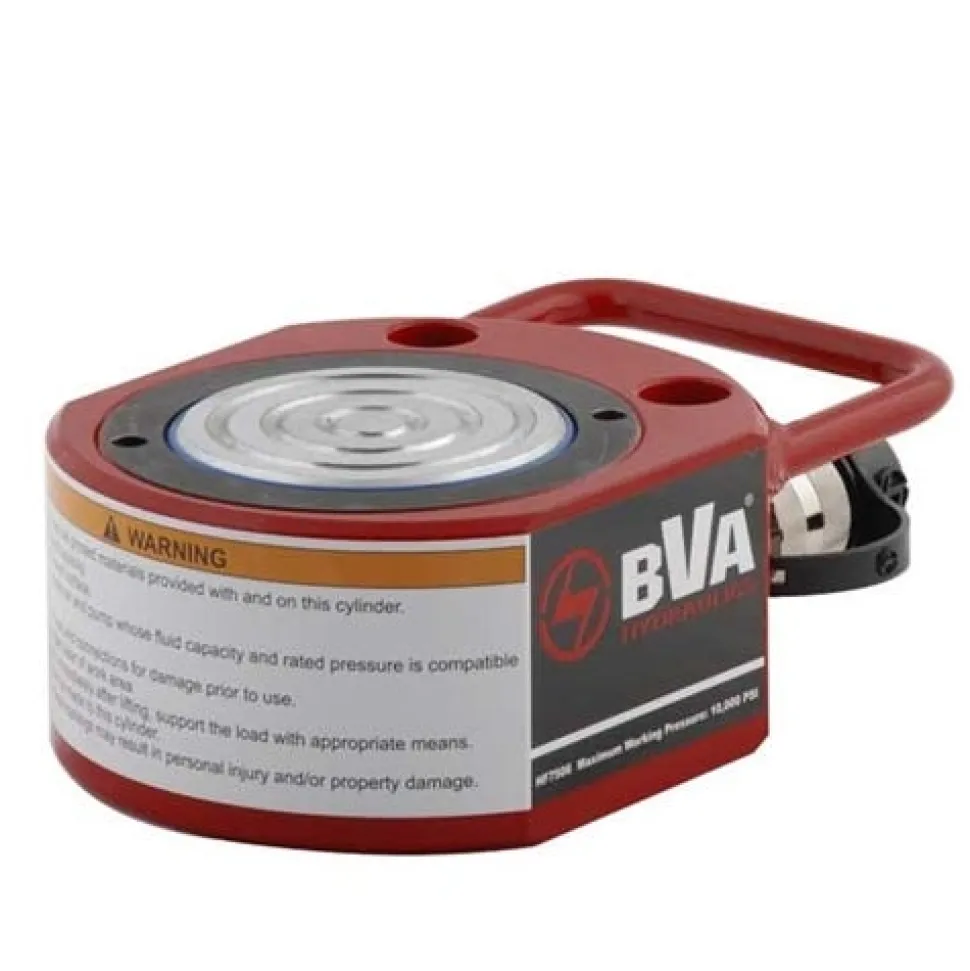

BVA 75 Ton 0.63″ Stroke Flat Body Single Acting Cylinder HF7506

• BVA Hydraulics
• BVA 75 Ton 0. Stroke Flat Body Single Acting Cylinder HF7506
• Features:
• Full compliance under ANSI B30.1 Standard
• Made of high quality steel
• Extremely short collapsed height can be used with applications having almost no clearance at the lift point
• Maximum working pressure: 10;000psi/700 bar
• Cylinder Capacity (Tons): 75
• Stroke (in.): 0.
• Model Number: HF7506
• Cylinder Effective Area In2): 16.1
• Pressure at Capacity: 9;320
• Oil Capacity (in3): 10.14
• Weight (lbs.): 25.4

“
