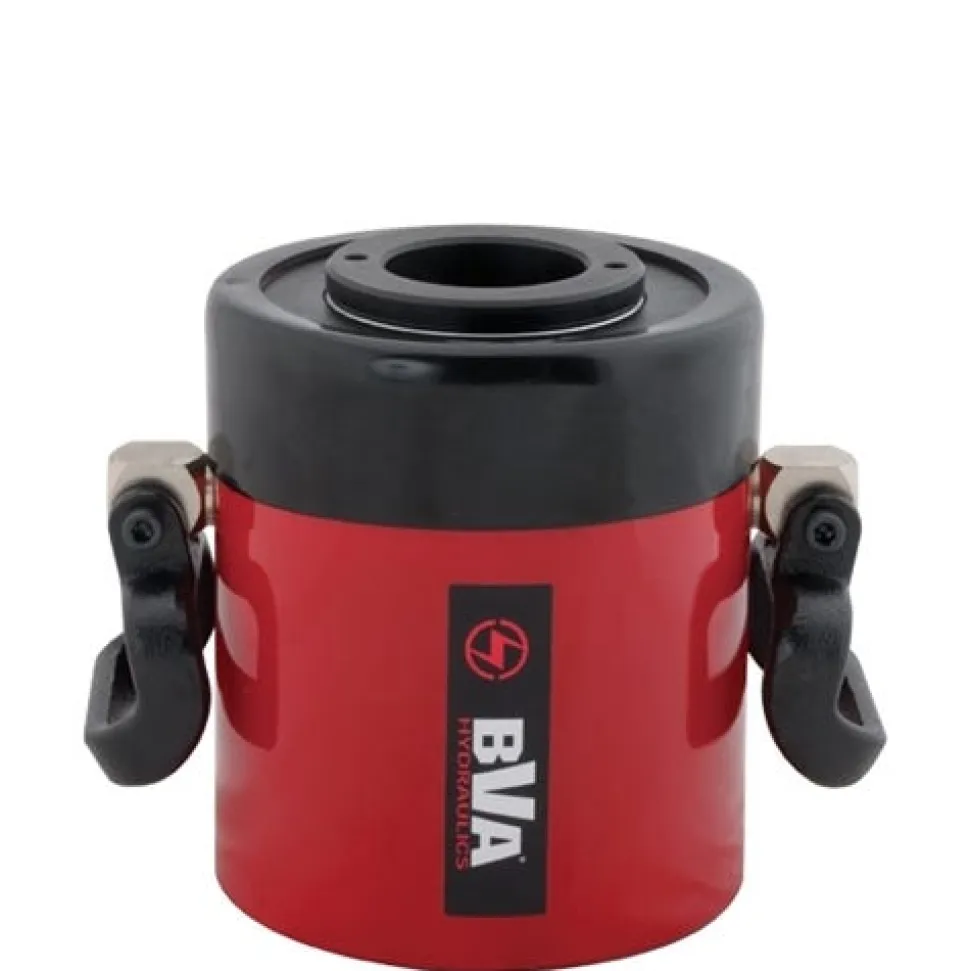

BVA 60 Ton 3″ Stroke Hollow Hole Single Acting Cylinder HC6003T

• BVA Hydraulics
• BVA 60 Ton 3 Stroke Hollow Hole Single Acting Cylinder HC6003T
• Ideal for pulling and pushing applications
• Heavy duty compression spring
• Dual wipers help prevent contamination
• Collar thread protector
• High flow coupler with dust cap
• XT cylinders do not come with internal rod threads
• 60 and 100 ton models are equipped with carrying handles
• Cylinder Capacity (Tons): 60
• Stroke (in.): 3.00
• Model Number: HC6003T
• Cylinder Effective Area In2): 13.05
• Pressure at Capacity: 9;195
• Oil Capacity (in3): 39.10
• Weight (lbs.): 65.7
• Min Height (in.): 9.77
• Max Height (in.): 12.77

“
