BVA 5 Ton Flat Body Cylinder Set – HF0503B Cylinder and P350 Hand Pump SP3-0503B

• BVA Hydraulics
• 5 Ton Flat Body Cylinder Set – HF0503B Cylinder and P350 Hand Pump SP3-0503B

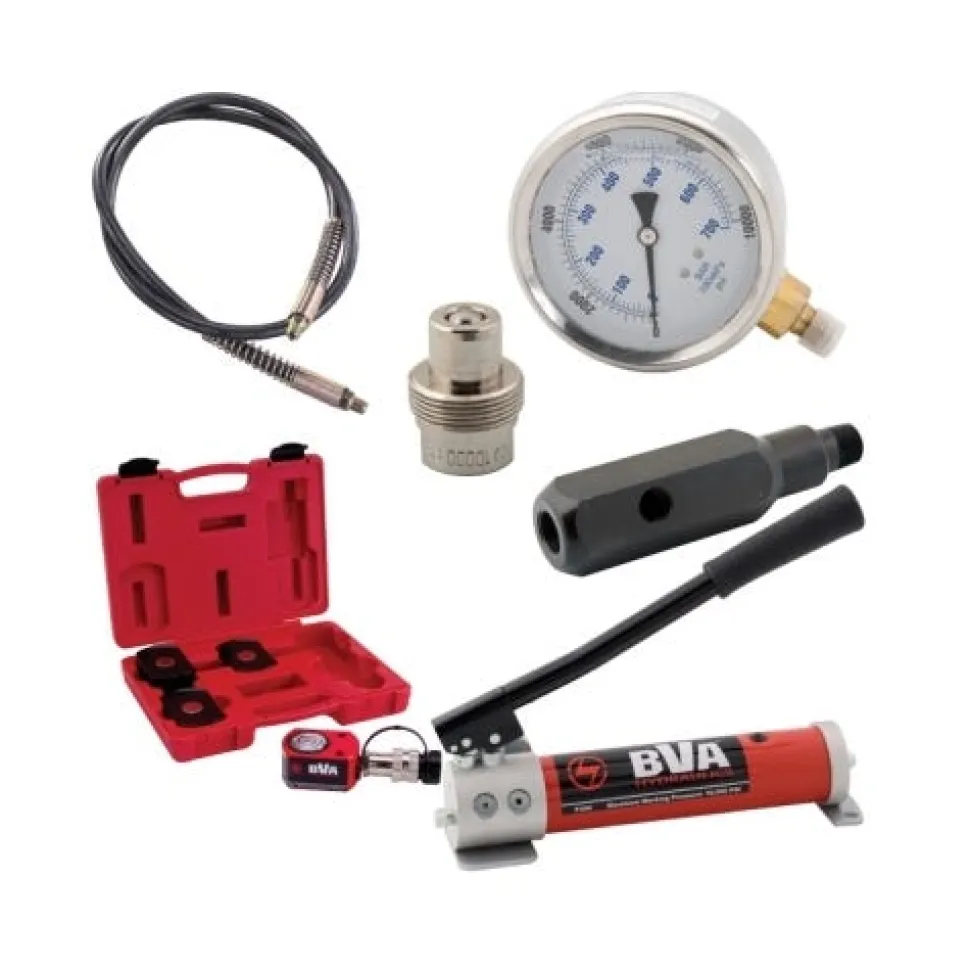

• SP3-0503B combo set includes all components need to power connect and monitor system pressure. It includes:
• P350 – 2 Speed Hand Pump with 21.4 cu. in usable oil
• HF0503B – 5 Ton; 0.24″ stroke flat body cylinder
• CS3814 – 1/4″ internal diameter with 3/8″ NPTF; 6 Foot Hydraulic Hose
• CH38M – 3/8″ high flow coupler
• GW2514 – 2-1/2″ face diameter liquid gauge with 1/4″ NPTF
• CF3814 – 1/4″ NPTF Gauge Fitting
• SPECIFICATIONS:
• Stroke (in.): 0.24
• Collapsed Height (in.): 1.26

“
