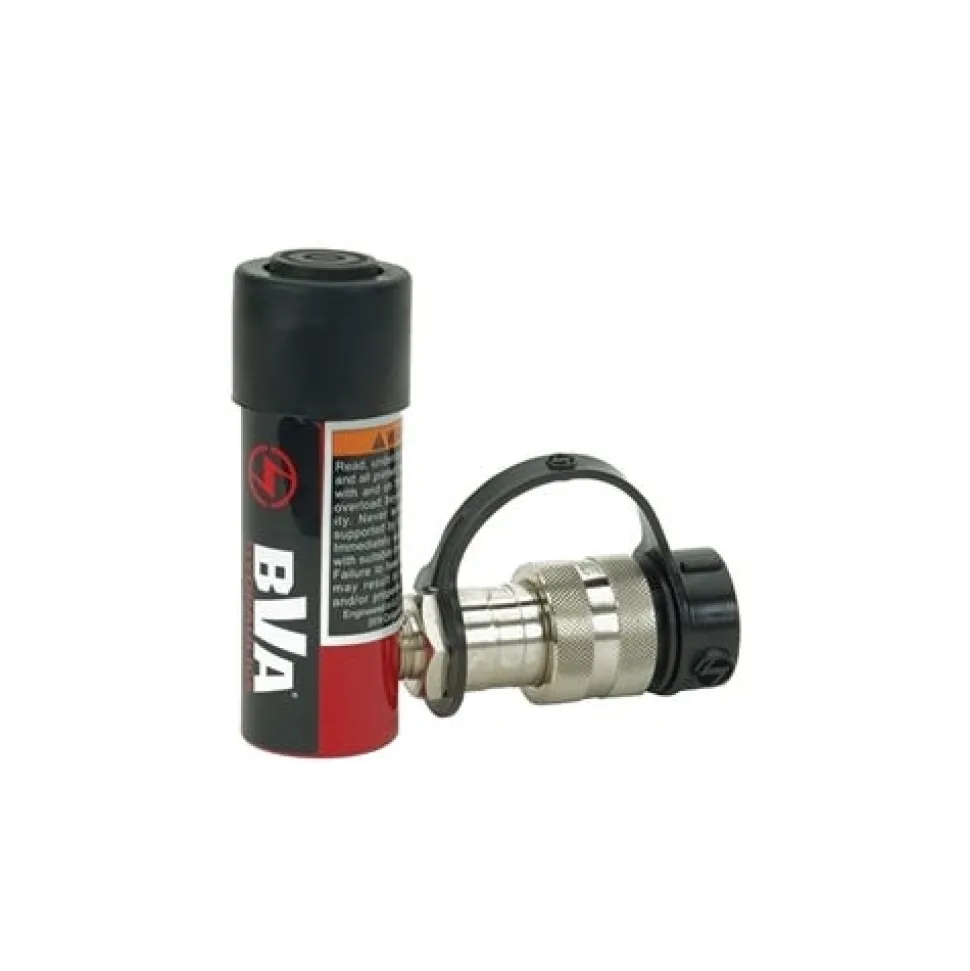

BVA 5 Ton 1″ Stroke Single Acting Cylinder H0501

BVA

5 Ton 1 Stroke Single Acting Cylinder H0501

FEATURES:

• Internal plunger threads
• Snap-in grooved saddles
• Plunger wipers help seal out dirt
• Collar fixture threads
• Two base mounting holes
• Maximum working pressure: 10;000 psi/ 700 bar
• High strength steel construction
• High-flow couplers
• Collar thread protector

SPECIFICATIONS:

Collapsed Height (in.)	4.58
Extended Height (in.)	5.58
Cylinder Bore (in.)	1.13
Outside Diameter (in.)	1.50
Rod Diameter	1
Saddle Diameter (in.)	0.98
Cylinder Effective Area	1.0
Internal Pressure at Capacity (psi)	10;000
Oil Capacity	1
Weight (lbs.)	3.1

“
