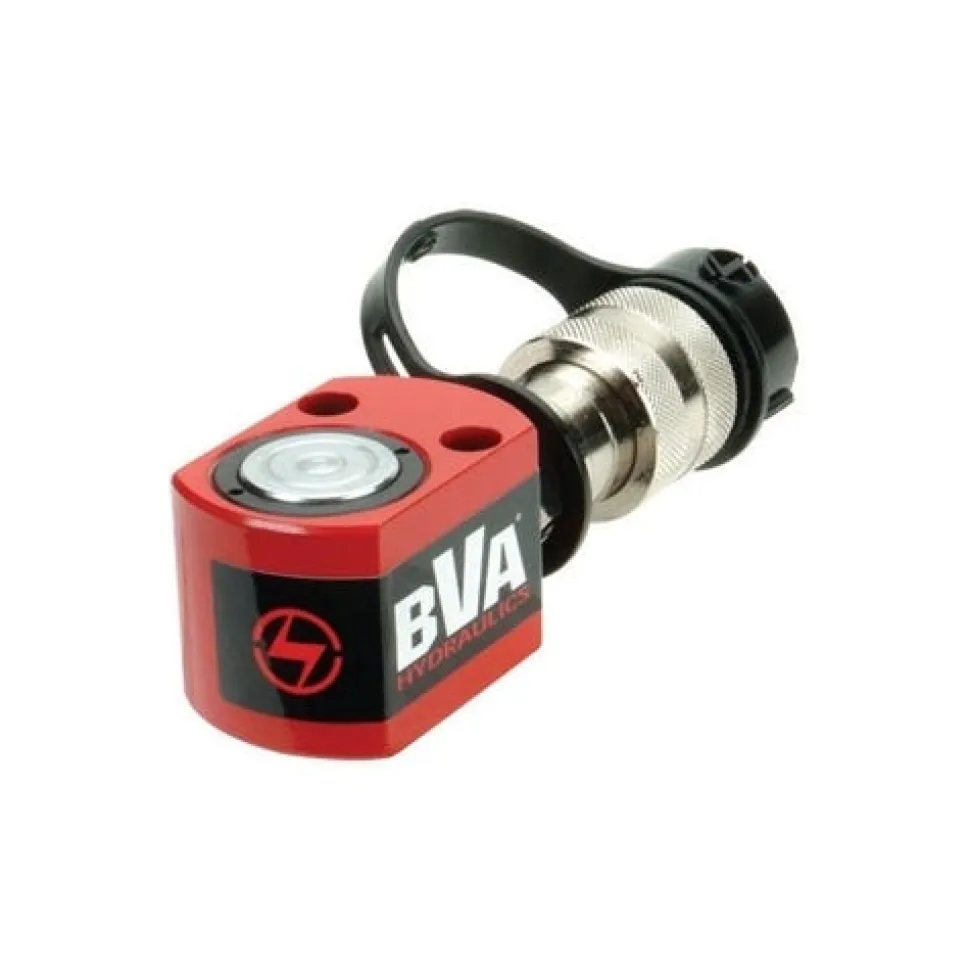

BVA 5 Ton 0.63″ Stroke Single Acting Cylinder H0500

BVA

5 Ton 0. Stroke Single Acting Cylinder H0500

FEATURES:

• Snap-in grooved saddles
• Plunger wipers help seal out dirt
• Collar fixture threads
• Two base mounting holes
• Maximum working pressure: 10;000 psi/ 700 bar
• High strength steel construction
• High-flow couplers
• Collar thread protector

SPECIFICATIONS:

Collapsed Height (in.)	1.63
Extended Height (in.)	2.26
Cylinder Bore (in.)	1.18
Outside Diameter (in.)	L2.37xW1.59xH1.63
Rod Diameter	0.98
Saddle Diameter (in.)	–
Cylinder Effective Area	1.1
Internal Pressure at Capacity (psi)	9;091
Oil Capacity	0.69
Weight (lbs.)	1.85

“
