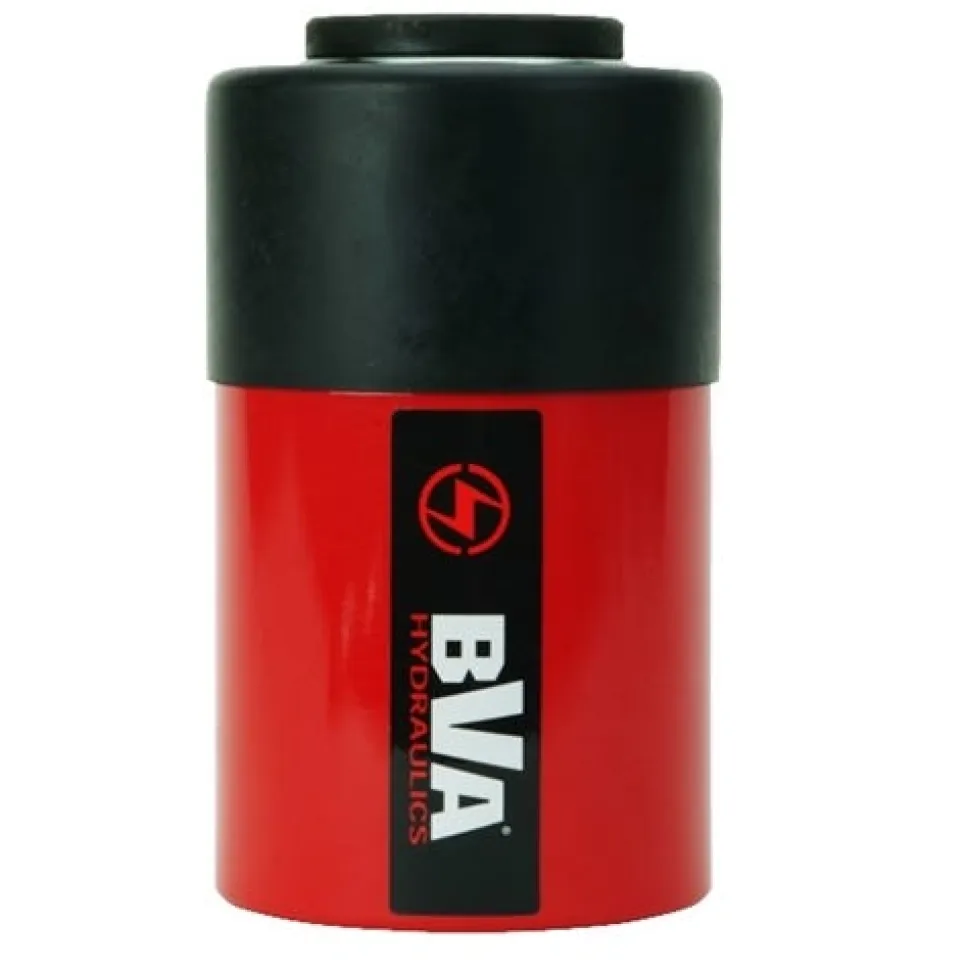

BVA 25 Ton 1.02″ Stroke Single Acting Cylinder H2501

BVA Hydraulics

BVA 25 Ton 1.02 Stroke Single Acting Cylinder H2501

FEATURES:

• Internal plunger threads
• Snap-in grooved saddles
• Plunger wipers help seal out dirt
• Collar fixture threads
• Two base mounting holes
• Maximum working pressure: 10;000 psi/ 700 bar
• High strength steel construction
• High-flow couplers
• Collar thread protector

SPECIFICATIONS:

Collapsed Height (in.)	5.63
Extended Height (in.)	6.65
Cylinder Bore (in.)	2.56
Outside Diameter (in.)	3.35
Rod Diameter	2.24
Saddle Diameter (in.)	1.97
Cylinder Effective Area	5.15
Internal Pressure at Capacity (psi)	9;708
Oil Capacity	5.25
Weight (lbs.)	12.06

“
