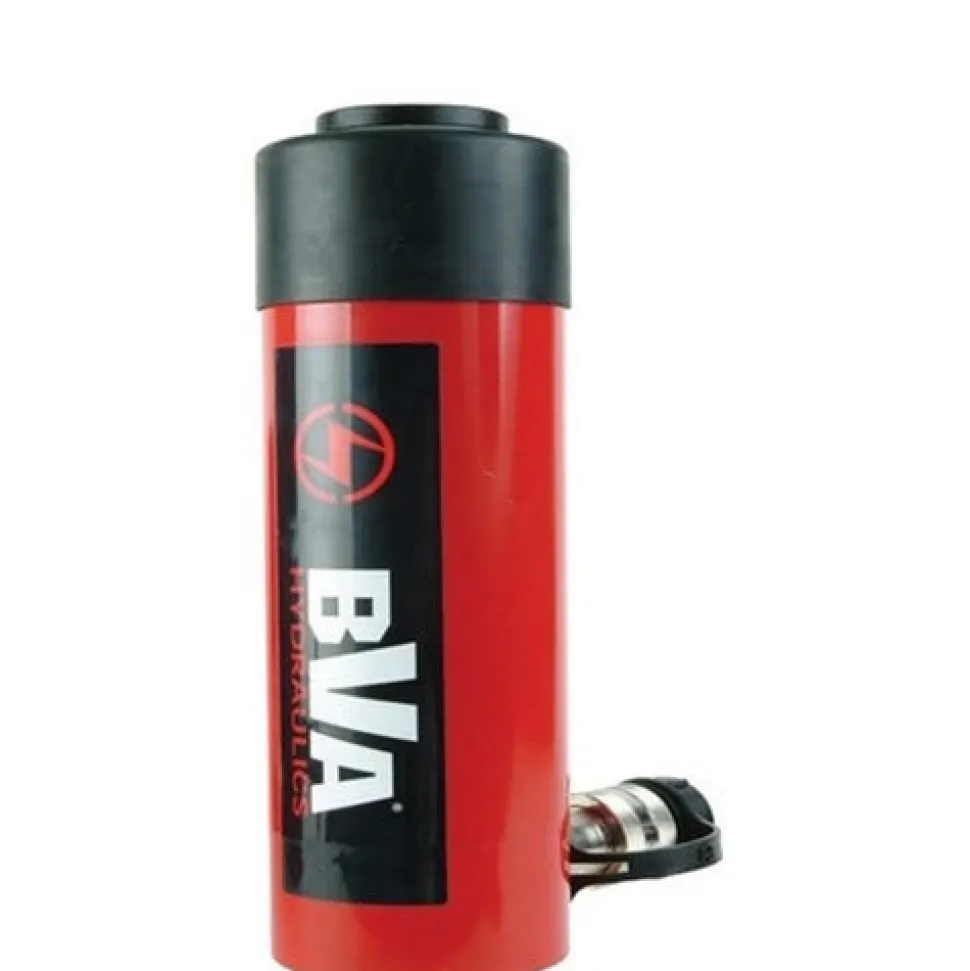

BVA 10 Ton 9.96″ Stroke Single Acting Hydraulic Cylinder H1010

BVA Hydraulics

10 Ton 9.96 Stroke Single Acting Hydraulic Cylinder H1010

FEATURES:

• Internal plunger threads
• Snap-in grooved saddles
• Plunger wipers help seal out dirt
• Collar fixture threads
• Two base mounting holes
• Maximum working pressure: 10;000 psi/ 700 bar
• High strength steel construction
• High-flow couplers
• Collar thread protector
• Cylinder Capacity (Tons): 10
• Stroke (in.): 9.96

SPECIFICATIONS:

Collapsed Height (in.)	13.86
Extended Height (in.)	23.82
Cylinder Bore (in.)	1.69
Outside Diameter (in.)	2.26
Rod Diameter	1.49
Saddle Diameter (in.)	1.38
Cylinder Effective Area	2.24
Internal Pressure at Capacity (psi)	8;928
Oil Capacity	22.31
Weight (lbs.)	13.07

“
