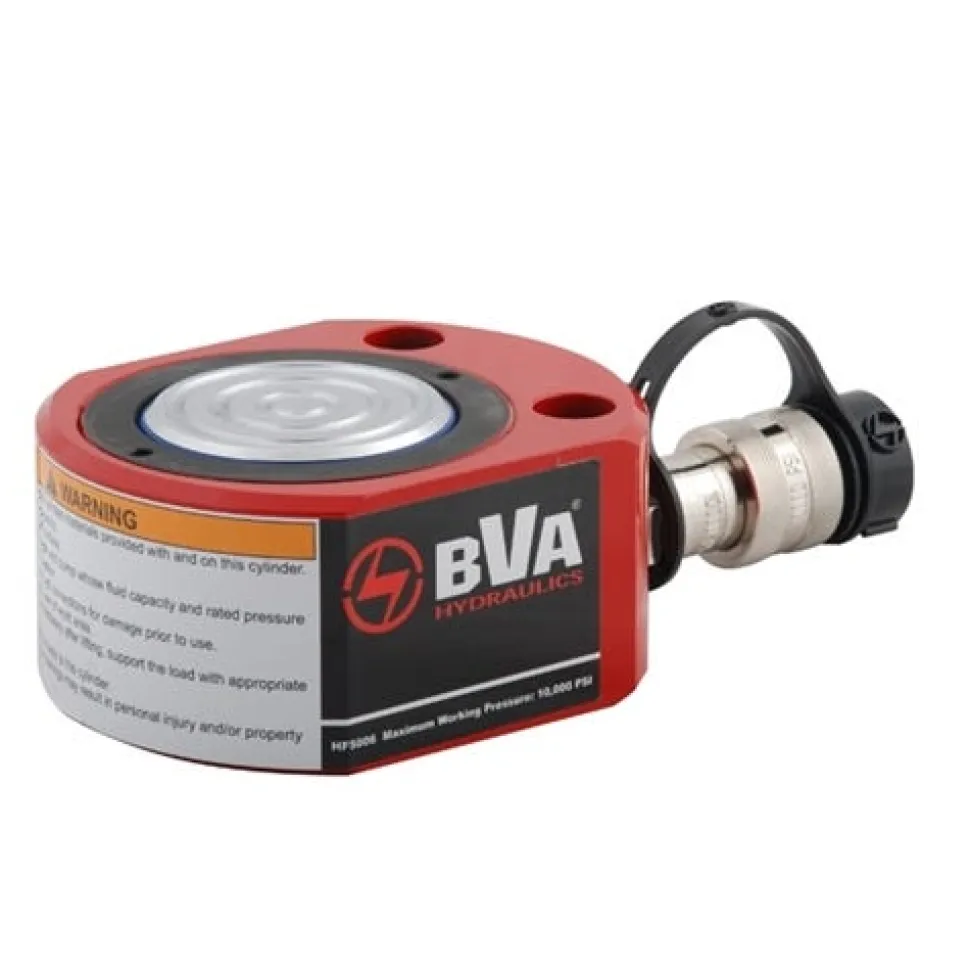

BVA 10 Ton 0.43″ Stroke Flat Body Single Acting Hydraulic Cylinder Kit HF1005B

• BVA Hydraulics
• BVA 10 Ton 0.43 Stroke Flat Body Single Acting Cylinder Kit HF1005B
• Includes 3 shims
• Features:
• Full compliance under ANSI B30.1 Standard
• Made of high quality steel
• Extremely short collapsed height can be used with applications having almost no clearance at the lift point
• Maximum working pressure: 10;000psi/700 bar
• Cylinder Capacity (Tons): 10
• Stroke (in.): 0.43
• Model Number: HF1005
• Cylinder Effective Area In2): 2.36
• Pressure at Capacity: 8;470
• Oil Capacity (in3): 1.01
• Weight (lbs.): 3.3

“
