Bosch

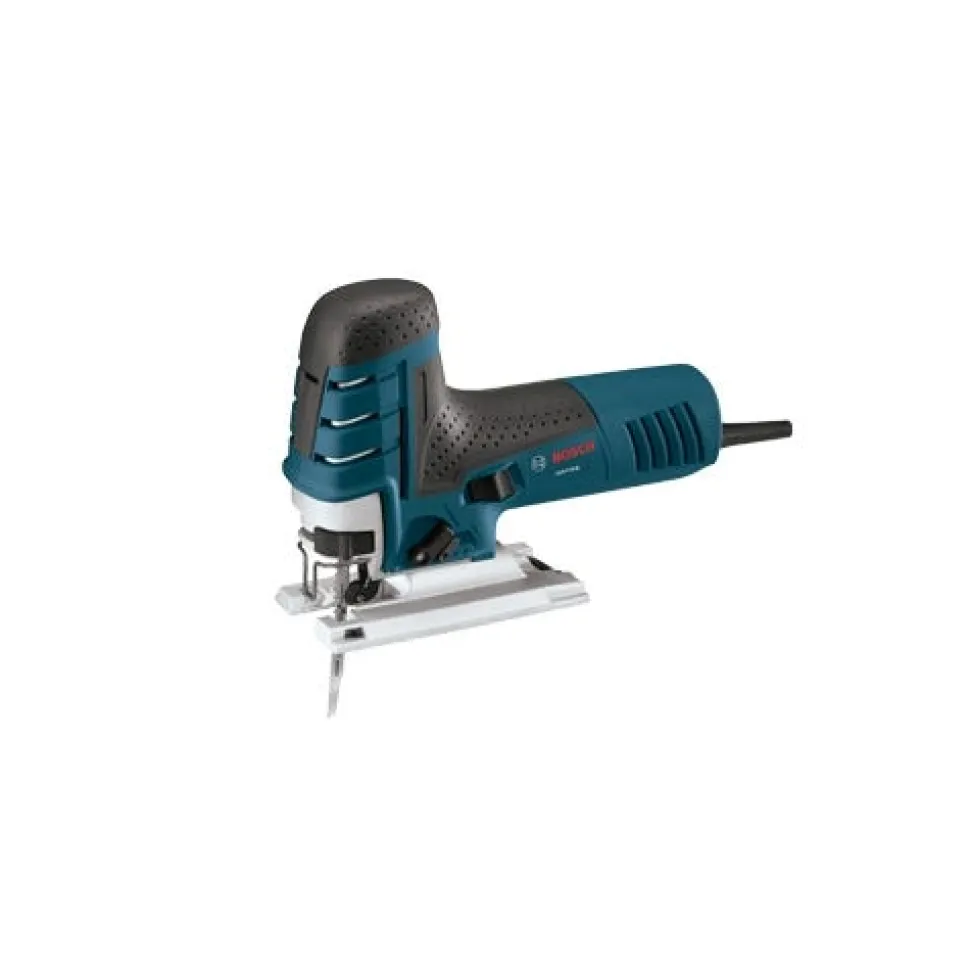

7.0AMP Barrel Grip Jigsaw JS470EB
FEATURES:
- Toolless Blade-Change System Fast insertion; blade ejection lever eliminates need to touch hot blade.
- Most secure jigsaw clamping system.
- Ambidextrous lock-on button For steady long cuts and user comfort and control.
- Variable speed – Dial sets maximum speed and accelerator trigger controls operating speed.
- Large; sturdy die-cast foot with steel insert and on-board bevel wrench.
- Powerful 7.0-Amp Jigsaw Top jigsaw amp rating.
- Exclusive multi-directional blade clamp provides superior grip of T-shank blades.
- Internal Precision Control – Precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation.
- Constant Response circuitry maintains desired speed for consistent performance and precision.
- Four orbital-action settings -Different blade strokes for smooth to aggressive cuts.
- Adjustable dust blower keeps cutting line clear.
- Ergonomic top handle with soft-grip areas for solid; comfortable grip.
- Country of Origin: Switzerland.
SPECIFICATIONS:
| Cutting Capacity- Soft Wood | 5-7/8″ |
|---|---|
| Cutting Capacity- Aluminum | 7/8″ |
| Cutting Capacity- Mild Steel | 3/8″ |
| Max. Bevel Cut | 45 |
| No Load SPM | 500-3;100 |
| Stroke Length | 1″ |
“
| Keyless / Keyed Blade Change | Keyless |
|---|---|
| Jig Saw Orbital Action Settings | 4 |
| Width (in) | 2.5 |
| Hertz | 60 |
| ETL Listed | No |
| Integrated Work Light | Not Featured |
| Color / Finish | Blue |
| Blades Included | 1 |
| Cord Length (ft) | 10 |
| Maximum Metal Cutting Capacity (in) | 0.875 |
| Dust Port | Yes |
| Integrated Blade Storage | No |
| Jig Saw Tool-Less Bevel Adjustment | No |
| Jig Saw Shoe Material | Die-Cast Aluminum with Steel Insert |
| Jig Saw Lock-on Switch | Yes |
| Country of Origin | Hungary |
| Max. Bevel Cut | 45° |
| Jig Saw Housing Material | High Density Plastic |
| Jig Saw Bevel Adjustment Wrench Included | Yes – Loose |
| Rating | 120V |
| Tool-Less Bevel Adjustment | No |
| Cordless / Corded | Corded |
| Number of Orbital Action Settings | 4 |
| UL Listed | Yes |
| Cutting Capacity-Aluminum | 0.875 |
| Length (in) | 7 |
| Voltage (V) | 120 |
| Tool Storage | Case |
| Cutting Capacity-Mild Steel | 0.375 |
| Blade Type | Jig Saw T-Shank |
| Net Tool Weight (lbs) | 5.9 |
| Jig Saw Electronic Speed Control | No |
| Jig Saw Tool-Less Blade Changing | Yes |
| Jig Saw Blades Included | 1 |
| Minimum Strokes per Minute – No Load | 500 |
| Shoe Material | Die-Cast Aluminum with Steel Insert |
| Jig Saw Stroke Length (in) | 1 |
| Quick Change Blade System | Yes |
| Maximum Wood Cutting Capacity (in) | 5.875 |
| Powered Tool Power Source | Electric – Corded |
| CSA Certified | No |
| Jig Saw Shoe Cover Included | Yes |
| Jig Saw Maximum Metal Cutting Capacity (in) | 0.875 |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Integrated Laser Guide | No |
| Orbital Action | Yes |
| Jig Saw Integrated Laser Guide | No |
| Housing Material | High Density Plastic |
| Dust Collection | Yes |
| Jig Saw Orbital Action | Yes |
| Jig Saw Width (in) | 2.5 |
| Electrical Cord Configuration | 14 Gauge |
| Maximum Strokes per Minute – No Load | 3100 |
| Main Handle Type | Top Handle |
| Jig Saw Adjustable Shoe | Yes |
| Bevel Adjustment Wrench Included | Yes – Loose |
| Shoe Cover Included | Yes |
| Jig Saw Color / Finish | Blue |
| Jig Saw Scrolling Action | Yes |
| Jig Saw Quick Change Blade System | Yes |
| Jig Saw Blade Wrench Included | Not Required |
| Scrolling Action | Yes |
| Reverse | No |
| Jig Saw Integrated Blade Storage | No |
| Height (in) | 7 |
| Jig Saw Main Handle Type | Top Handle |
| Stroke Length (in) | 1 |
| Jig Saw Maximum Strokes per Minute – No Load | 3100 |
| Lock-on Switch | Yes |
| Jig Saw Integrated Work Light | No |
| Amperage (A) | 7 |
| Jig Saw Length (in) | 7 |
| Weight | 5.9 lb |
| Electronic Speed Control | No |
| Jig Saw Height (in) | 7 |
| Saw Design | Barrel Grip |
| Adjustable Shoe | Yes |
| Voltage | 120 |
| Blade Wrench Included | Not Required |
| Tool-Less Blade Changing | Yes |
| External Motor Brush Access | No |
| Dust Blower | Yes |
| Jig Saw Variable Speed | Yes |
| Jig Saw External Motor Brush Access | No |
| Weight (lbs) | 5.9 lb |
| Cutting Capacity- Soft Wood | 5-7/8″ |
| Jig Saw Dust Blower | Yes |
| GTIN | 346398373 |
| Variable Speed | Yes |
| Jig Saw Minimum Strokes per Minute – No Load | 500 |
| Jig Saw Maximum Wood Cutting Capacity (in) | 5.875 |
| OPT SKU | JS470EB |
|---|---|
| MPN | JS470EB |
| UPC/GTIN | 000346398373 |
| Product Type | Jig Saws |
| Google Category | Hardware > Tools > Saws > Jigsaws |
| Power Method | Corded/Electric |
| Voltage | 110V/120V |
| Shipping Weight | 9.93 |
