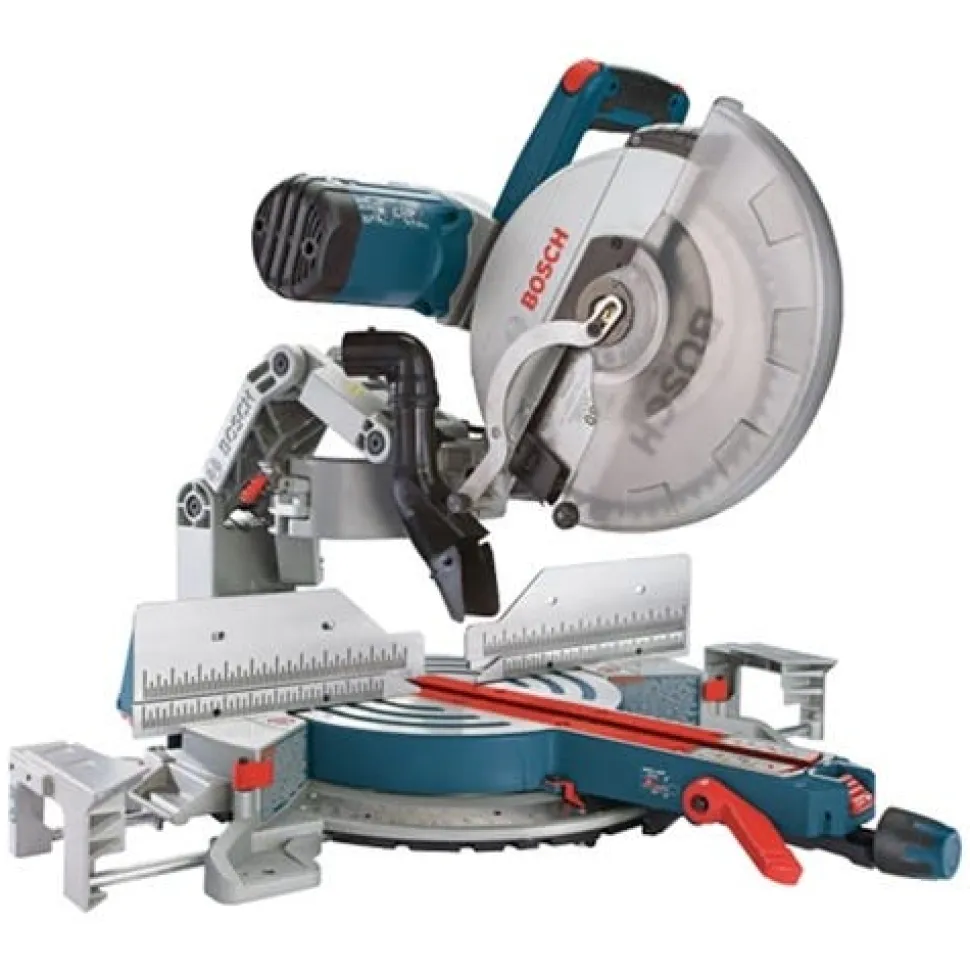

Bosch 12″ Dual-Bevel Glide Miter Saw GCM12SD

Name: Bosch 12" Dual-Bevel Glide Miter Saw GCM12SD
Brand: Bosch Power Tools
SKU: SKU5JDHcl65f2
Availability: InStock

$138.89

SKU: SKU5JDHcl65f2 Categories: Miter Saws, Power Tools Tag: Bosch Power Tools Brand: Bosch Power Tools

Additional Details

Bosch

12 Dual-Bevel Glide Miter Saw GCM12SD

FEATURES:

A soft-grip ambidextrous handle along with a combination dust chute and vacuum adaptor add to user comfort
The saw also offers a large cutting capacity; easy-to-read bevel and miter scales with detents at common angles; and easy-access upfront controls
Integrated expanding base extensions: 60% more left-to-right material support than leading competitor – 40 In. left to right
Large easy-to-read uniform bevel and stainless steel miter scales: 52 left/60 right miter capacity; 47 left/47 right bevel capacity with marked detents and roof pitch angles
Adjustable miter detents: detents at 0; 15; 31.6; 22.5; 45; 60 right super-accurate and durable design
Push-button miter Detent override – easy-to-access thumb actuated control right up front for fine miter angle adjustment
Bevel detents: 0; 33.9; 45 left/right for accurate cuts
Category best 90% dust collection – optimized for cutting 2x material with a vacuum
Ergonomic ambidextrous trigger handle with soft grip – large form fitting ergonomic handle provides comfort for all-day use

SPECIFICATIONS:

Attributes
Amperage	15.0
Bevel Angle Range	47 left and 47 right
Bevel Stops	0; 33.9; 45 and 47 (L/R)
Blade Diameter	12.0
Blade Size	12″
Case Type	–
Category	Compound Miter Saws
Dust Collection	Yes
Electric Motor Brake	Yes
Height	27.0″
Height of Table from Base Feet to Table Surface – In.	3.75
Length	32.375″
Max. Base Molding Against Fence	3-7/8 In. (6-3/4 In. from 0 to 47 L)
Max. Crown Molding (38 Spring) Angled Against Fence	5-1/4 In. (5-1/2 In. from 0 to 47 L)
Max. Crown Molding (45 Spring) Angled Against Fence	6 In.
Max. Cut Capacity – 0 Miter 0 Bevel	3-1/2 In. x 13-1/2 In. (4×14 Dimensional Lumber)
Max. Cut Capacity – 0 Miter 45 Left Bevel	2 In. x 13-1/2 In. (2×14 Dimensional Lumber)
Max. Cut Capacity – 0 Miter 45 Right Bevel	1-1/2 In. x 13-1/2 In. (2×14 Dimensional Lumber)
Max. Cut Capacity – 45 Miter 0 Bevel	3-1/2 In. x 9-1/2 In. (4×10 Dimensional Lumber)
Max. Cut Capacity – 45 Miter 45 Left Bevel	2 In. x 9-1/2 In. (2×10 Dimensional Lumber)
Max. Cut Capacity – 45 Miter 45 Right Bevel	1-1/2 In. x 9-1/2 In. (2×10 Dimensional Lumber)
Miter Angle Range	52 Left; 60 Right
Miter Detents	0; 15; 22.5; 31.6; 45; (Left/Right) 60; (Right)
Miter Positive Stops	0; 15; 22.5; 31.6; 45 (Left/Right); 60 (Right)
No Load RPM	3;800
Separate On/Off Speed Control	Blank
Voltage	120V
Weight	65.0lb
Width	26.5″

WORKS WITH:

Works With	Miter Saw Stands T1B; T4B; GTA3800
	Crown Molding Stops (Pair) MS1233
	Length Stop MS1234
	Vacuum Hoses VH1022; VH1035; VH15 (by means of VX120 adapter included with those hoses); VH1622A and VH15A (by means of anti-static adapter included with those hoses); VAC005; VAC006; VAC008; and most other 35 mm and 22 mm hoses
	Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses VAC002 or VAC024
	Adapter for 2-1/2 in. Vacuum Hoses VAC020
	Arbor Washer Laser Guide LS010

“

Manufacturer Specifications

Cord Length (ft)	6
Quick Release Vise	No
Integrated Laser Guide	No
Amperage (A)	15
Voltage	120 Volts
Crosscut Capacity – 45 Miter 45 Left Bevel	2 In. x 9-1/2 In. (2×10 Dimensional Lumber)
Spindle Lock	Yes
Color / Finish	Metal
Weight	65 lb
Net Tool Weight (lbs)	65
Cordless / Corded	Corded
Tool-Less Blade Changing	No
Motor Horsepower (hp)	3
Electric Motor Brake	Yes
Bevel Stops	0Â°, 33.9Â°, 45Â° Left/Right
Blade Wrench Included	Yes – Stored on Tool
Electrical Cord Configuration	Heavy Duty
Blades Included	1
Width (in)	26.5
Country of Origin	China
GTIN	346393941
CSA Certified	Yes
Integrated Work Light	Not Featured
Saw Drive	Belt Drive
Miter Detents	0Â°, 15Â°, 22.5Â°, 31.6Â°, 45Â° (Left/Right)
Base Construction	Aluminum
Miter Saw Type	Sliding Dual Bevel Compound Miter
Saw Blade Diameter (in)	12 in
Electronic Speed Control	No
Weight (lbs)	65 lb
Additional Cutting Specifications	Max. 45Â° Crown Molding Angled Against Fence = 6 In. Max. 38Â° Crown Molding Angled Against Fence = 5-1/4 In. (5-1/2 In. from 0Â° to 47Â° L) Max. Base Molding Against Fence= 3-7/8 In. (L 6-3/4 In. from 0Â° to 47 L)
Dust Collection	Yes
Fence Size (HxL)	Left: 4-1/4 In. x 11-3/4 In. Right: 4-1/4 In. x 12-1/4 In.
Fence Type	SquareLock Quick-Release
UL Listed	Yes
ETL Listed	No
Crosscut Capacity – 45 Miter 45 Right Bevel	1-1/2 In. x 9-1/2 In. (2×10 Dimensional Lumber)
Blade Diameter (in)	12
Dust Port	Yes
Maximum RPM – No Load	3800
Length (in)	32.375
Height (in)	27
Arbor Size (in)	1
Beveling Capability	Dual
External Motor Brush Access	No

Specifications

More Information
OPT SKU	GCM12SD
MPN	GCM12SD
UPC/GTIN	000346393941
Product Type	Miter Saws
Google Category	Hardware > Tools > Saws > Miter Saws
Diameter	12″
Power Method	Corded/Electric
Voltage	110V/120V
Shipping Weight	74.00
