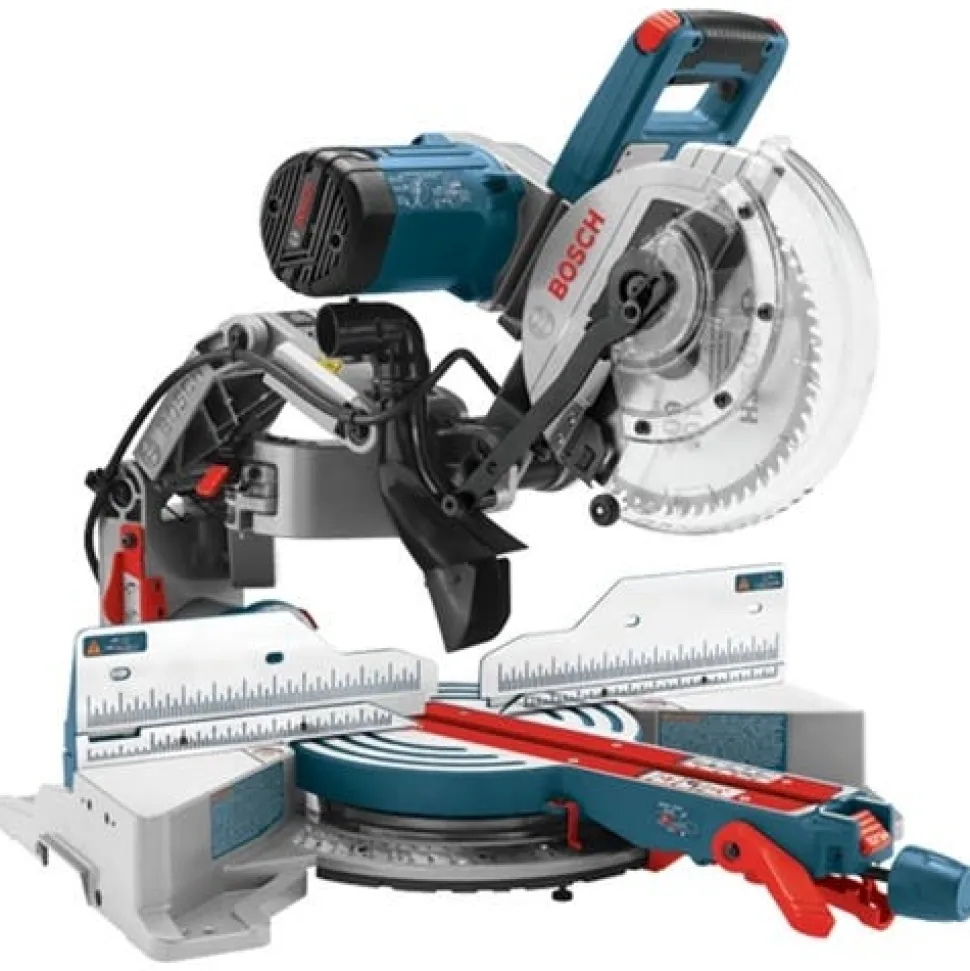

Bosch 10″ Dual-Bevel Glide Miter Saw CM10GD

$124.89

SKU: SKUzRajODtFmm Categories: Miter Saws, Power Tools Tag: Bosch Power Tools Brand: Bosch Power Tools

Description
Reviews (0)

Additional Details

Bosch

10 Dual-Bevel Glide Miter Saw CM10GD

FEATURES:

Axial-Glide System offers durable; consistent precision over tool life
Saves up-to 10″ of workspace and is conveniently compact
Glide action for unmatched smoothness of cut
Expanded cutting capacity: 12″ horizontal capacity (nominal); 5-1/2″ vertical capacity against the fence (base); 6″ crown capacity against the fence (45 spring)
Upfront bevel controls: all-metal bevel lock lever and range selector located upfront for quick and easy bevel settings without reaching behind the saw
Chop/crown lock locks head in place for maximum chop cutting capacity for upright base molding and nested crown molding
Tall sliding 4-1/4″ fences for easy bevel set ups and increased crown and base molding capacity

INCLUDES:

(1) 10 In. 60-Tooth Carbide-Tipped Saw Blade
(1) Wrench
(1) Work Clamp
(1) Dust Bag
(1) Vacuum adapter/elbow

Attributes
Amperage	15.0
Bevel Angle Range	47 left and 47 right
Bevel Stops	0; 33.9; 45 and 47 (L/R)
Blade Diameter	10.0
Blade Size	10″
Case Type	No Case Included
Category	Compound Miter Saws
Depth Front-to-Back; Not Including Arm – In.	30.0
Dust Collection	Yes
Electric Motor Brake	Yes
Height	20.5″
Height of Table from Base Feet to Table Surface – In.	4.0
Length	32.0″
Max. Base Molding Against Fence	3-1/4 (5-1/2″ from 0 to 47 L)
Max. Crown Molding (38 Spring) Angled Against Fence	5-1/4
Max. Crown Molding (45 Spring) Angled Against Fence	6″
Max. Cut Capacity – 0 Miter 0 Bevel	3-1/8 In. x 12 In. (Can cut 4×12 dimensional lumber when Adjustable Depth Stop is used.)
Max. Cut Capacity – 0 Miter 45 Left Bevel	1-1/2 In. x 12 In. (Can cut 2×12 dimensional lumber)
Max. Cut Capacity – 0 Miter 45 Right Bevel	1 In. x 12 In. (Can cut 1×12 dimensional lumber)
Max. Cut Capacity – 45 Miter 0 Bevel	3-1/8 In. x 8 In. (Can cut 4×8 dimensional lumber when Adjustable Depth Stop is used.)
Max. Cut Capacity – 45 Miter 45 Left Bevel	1-1/2 In. x 8 In. (Can cut 2×8 dimensional lumber)
Max. Cut Capacity – 45 Miter 45 Right Bevel	1 In. x 8 In. (Can cut 1×8 dimensional lumber)
Miter Angle Range	52 Left; 60 Right
Miter Detents	0; 15; 22.5; 31.6; 45; (Left/Right) 60; (Right)
Miter Positive Stops	0; 15; 22.5; 31.6; 45 (Left/Right); 60 (Right)
No Load RPM	4;800
Separate On/Off Speed Control	Blank
Voltage	120V
Weight	64.0lb
Width	26.5″
Works With	Miter Saw Stands T1B; T4B; GTA3800
	Side-Support Extension Bars MS1238
	Crown Molding Stops (Pair) MS1233
	Length Stop MS1234
	Arbor Washer Laser Guide LS010
	Vacuum Hoses VH1022; VH1035; VH15 (by means of VX120 adapter included with those hoses); VH1622A and VH15A (by means of anti-static adapter included with those hoses); VAC005; VAC006; VAC008; and most other 35 mm and 22 mm hoses
	Adapter for 1-1/4 in and 1-1/2 in. Vacuum Hoses VAC002 or VAC024
	Adapter for 2-1/2 in. Vacuum Hoses VAC020

“

Manufacturer Specifications

Fence Size (HxL)	Left: 4-1/4 In. x 12 In. Right: 4-1/4 In. x 12 In.
Spindle Lock	Yes
Integrated Work Light	Not Featured
Dust Collection	Yes
Voltage	120 Volts
Fence Type	Sliding
External Motor Brush Access	Yes
Miter Detents	0Â°, 15Â°, 22.5Â°, 31.6Â°, 45Â° (Left/Right)
Weight	64 lb
Weight (lbs)	64 lb
Electronic Speed Control	No
Crosscut Capacity – 45 Miter 45 Right Bevel	1 In. x 8 In. (Can cut 1×8 dimensional lumber)
Miter Saw Type	Sliding Compound Miter
Blade Diameter (in)	10
Base Construction	Aluminum
Saw Blade Diameter (in)	10 in
Amperage (A)	15
CSA Certified	No
Electrical Cord Configuration	Heavy Duty
Electric Motor Brake	Yes
Height (in)	20.5
Country of Origin	China
GTIN	346452716
Tool-Less Blade Changing	No
Beveling Capability	Dual
Crosscut Capacity – 45 Miter 45 Left Bevel	1-1/2 In. x 8 In. (Can cut 2×8 dimensional lumber)
Dust Port	Yes
Color / Finish	Blue/ Silver
Quick Release Vise	No
Length (in)	32
Blade Wrench Included	Yes – Stored on Tool
ETL Listed	No
Bevel Stops	0Â°, 33.9Â°, 45Â° left and right
Integrated Laser Guide	No
Arbor Size (in)	0.625
Maximum RPM – No Load	4800
Saw Drive	Belt Drive
Motor Horsepower (hp)	0
Blades Included	1
Width (in)	26.5
Cordless / Corded	Corded
Cord Length (ft)	6
Net Tool Weight (lbs)	64
UL Listed	Yes

Specifications

More Information
OPT SKU	CM10GD
MPN	CM10GD
UPC/GTIN	000346452716
Product Type	Miter Saws
Google Category	Hardware > Tools > Saws > Miter Saws
Diameter	10″
Power Method	Corded/Electric
Voltage	110V/120V
Shipping Weight	72.00
